LEO R Automatic Saw 22″ Blade Automation
what is the LEO R Automatic Saw?
The LEO R Automatic Saw 22″ Blade Automation is a high-performance automatic front blade saw equipped with a Ø 550 mm saw blade and 2-axis servo control, designed for accurate cutting of aluminum and PVC profiles across a wide range of angles and thicknesses. Engineered for cutting wider profiles, it delivers consistent, high-quality results with fast setup and minimal operator intervention.

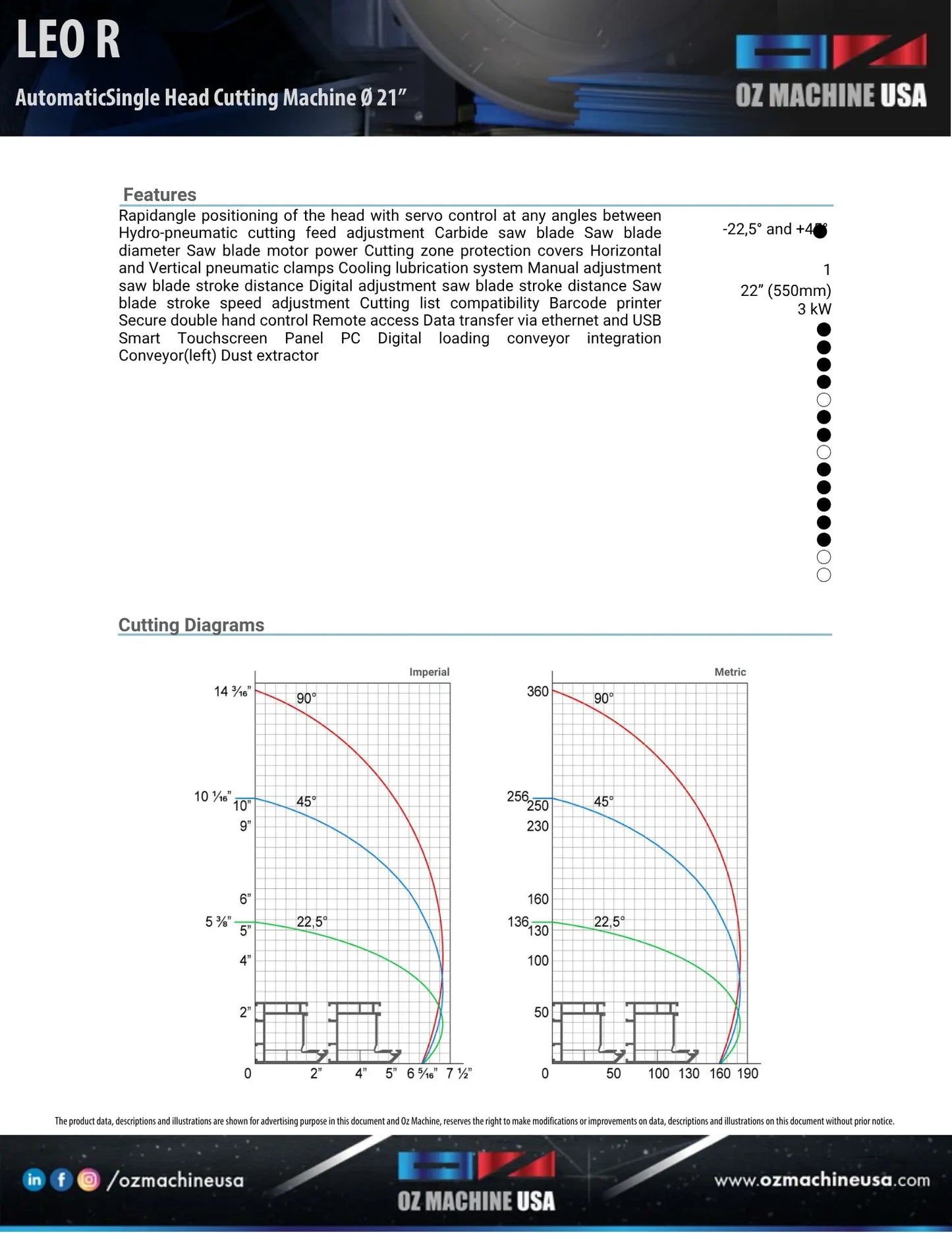

LEO R Quick Specs:
- Control System 2-Axis CNC (X-Axis Feeding / Y-Axis Blade Stroke)
- Angular Range -22.5° to +45° (Servo-Controlled)
- Saw Blade Diameter 550mm (22 inches)
- Max Profile Dimensions 200 mm (7 7/8") (W) x 150 mm (6") (H)
- Motor Power 4 HP 3000 RPM
- Connectivity Ethernet, USB, and Remote Desktop Support
Featuring a servo-driven motion system, the LEO–R provides rapid and automatic angle positioning between –22.5° and +45°, enabling precise cutting for both standard and custom applications. Its advanced positioning accuracy ensures smooth operation and repeatable results, making it ideal for high-efficiency production environments.
Cutting quality and safety are enhanced through horizontal and vertical pneumatic clamps, which securely hold profiles during cutting, along with protective cutting zone covers that safeguard the operator. Additional features such as hydro-pneumatic cutting feed adjustment, spray saw blade cooling, and digitally adjustable saw blade travel distance and speed ensure clean cuts and extended blade life.
The 10″ touchscreen control panel, barcode writing capability, and data transfer via Ethernet and USB provide intuitive operation and seamless integration into automated workflows. Optional Softcut cutting optimization software and a chip vacuum system further increase efficiency. Combining precision, automation, and robust design, the LEO–R delivers reliable performance for demanding front-blade cutting applications.
Serving Florida fabrication shops from our Miami location.
