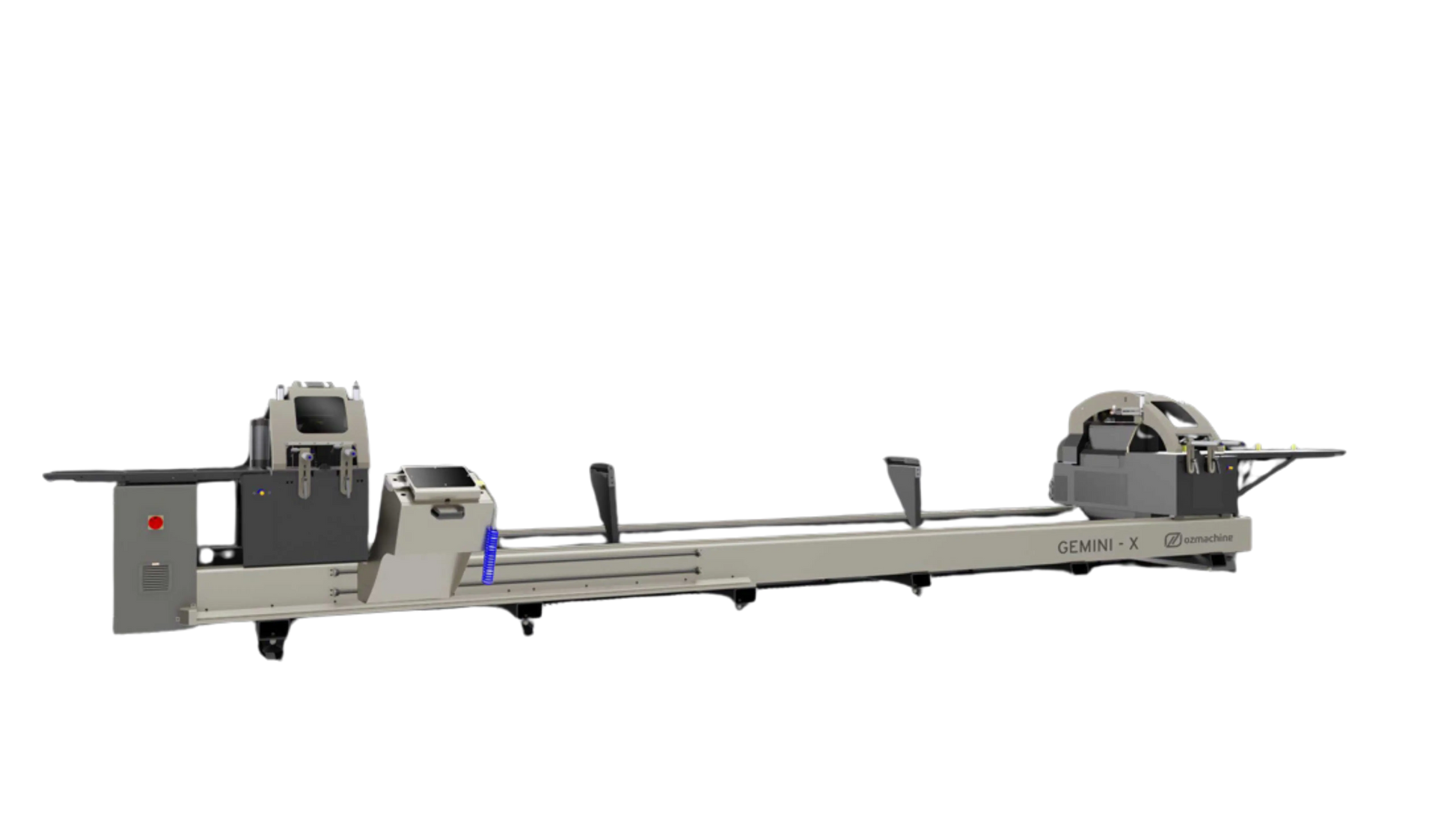

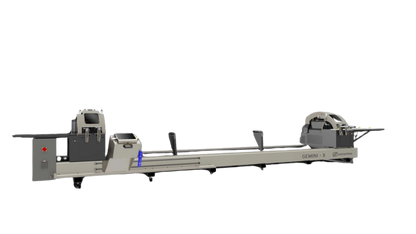

GEMINI X Radial Double Head Saw 22″ Blade Automation is a high-performance double head radial saw equipped with Ø 550 mm blades and full 3-axis servo control, engineered for fast, accurate cutting of aluminum and PVC profiles in a wide range of angles and thicknesses. Designed specifically for large and long profiles, it delivers exceptional productivity and cutting precision in automated production environments.

Featuring servo-controlled rapid positioning, the GEMINI-X allows both saw heads to be adjusted automatically to any angle between 30° and 90°, ensuring quick setup and repeatable accuracy. Its double-head configuration enables simultaneous cutting of profiles from 460 mm up to 6,000 mm, while eliminating limitations on processing longer profiles making it ideal for high-volume and large-format applications.

Cutting quality and operator safety are enhanced through horizontal and vertical pneumatic clamps, multiple profile support units, and fully enclosed cutting zone protection covers. Additional features such as hydro-pneumatic cutting feed adjustment, spray saw blade cooling, and digital control of saw blade travel distance and speed ensure clean, precise cuts across all materials.

The 10″ touchscreen control panel, barcode printing capability, and data transfer via Ethernet and USB provide intuitive operation and seamless integration into automated workflows. Optional Softcut cutting optimization software, expandable X-axis length, and compatibility with powder extraction systems further enhance efficiency. Combining power, automation, and precision, the GEMINI-X sets a new standard for double-head profile cutting performance.
