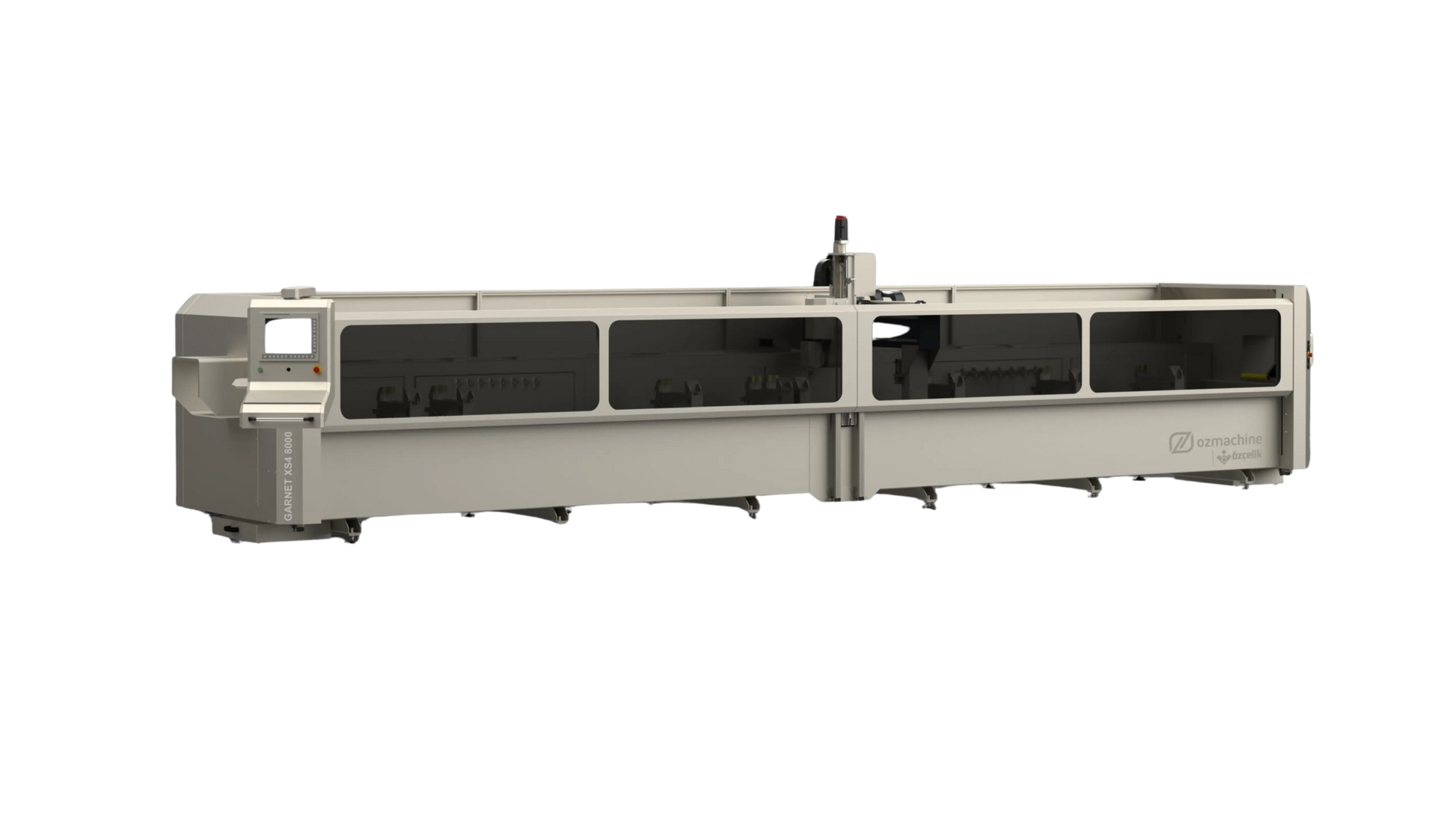

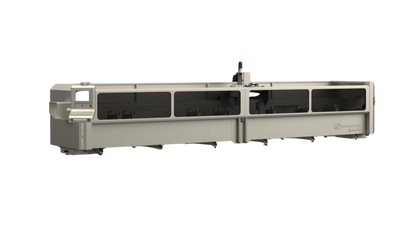

GARNET XS4 8000 CNC Machining Center

GARNET XS4 8000 CNC Controlled Profile Machining Center (4 Axis)

The GARNET XS4 8000 is a next-generation 4-axis CNC machining center designed to deliver exceptional flexibility, precision, and productivity across a wide range of applications. Equipped with a high-performance 5.6 kW spindle motor capable of operating between –90° and +90°, it effortlessly machines aluminum, PVC, light alloys, and even steel, adapting easily to profiles of varying sizes and complexities.

Engineered as a true all-in-one machining solution, the GARNET XS4 8000 seamlessly integrates milling, water drainage channel opening, punching, marking, and end milling into a single, efficient process. Whether handling standard production runs or highly customized, non-standard profiles, the machine excels in delivering consistent, high-quality results. Its generous 340 × 255 mm working area enhances usability and allows for efficient, uninterrupted processing.

To maximize uptime and efficiency, the machine features an automatic tool changer with a 16-tool magazine, enabling fast transitions between operations without manual intervention. Fully automatic clamp positioning along the X-axis significantly reduces setup time and removes much of the operator’s workload, allowing users to focus on productivity rather than machine adjustments. Capacity can be further optimized with on-demand clamp configuration, making it easy to adapt to unique profile sizes and requirements.

Built for superior rigidity and accuracy, the double-linear guide bridge system minimizes vibration and ensures precise, stable machining even during demanding operations. An optional automatic lubrication system maintains transmission components, extending service life and preserving long-term accuracy. Combining power, intelligence, and robust engineering, the GARNET XS4 8000 empowers manufacturers to push the boundaries of what’s possible in CNC profile processing where performance and imagination meet.
