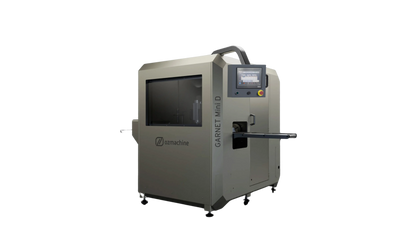

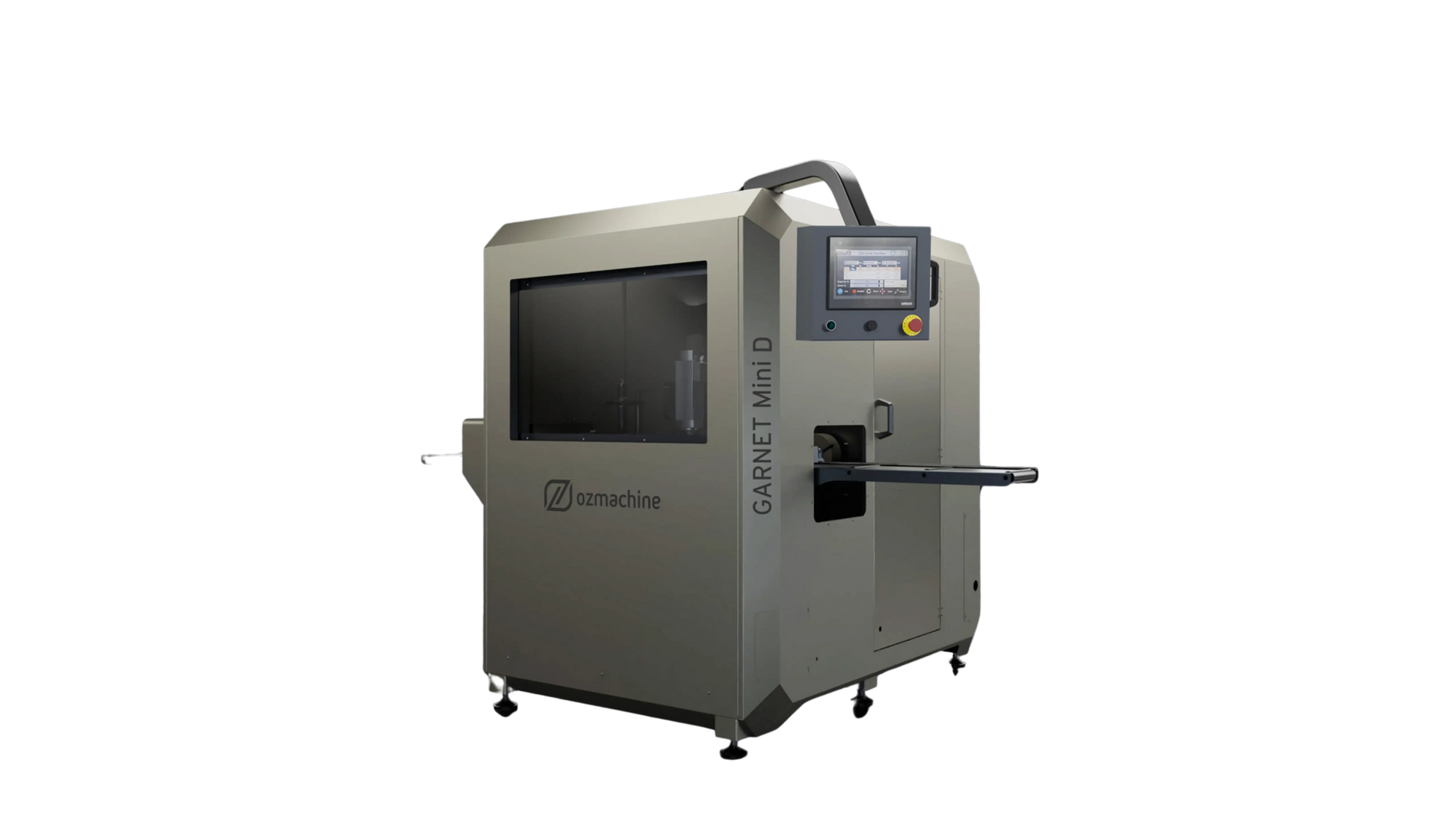

GARNET Mini D Compact milling center
What is the Garnet Mini D ?
The GARNET Mini D is a compact milling center built to deliver unmatched precision and versatility for aluminum and plastic profiles. With its advanced copy router function, it seamlessly performs complex operations including lock, handle, hinge, and latch slot machining across three surfaces with ease and accuracy.
GARNET MINI D Quick Specs:
- Primary Function Milling, Drilling, Tapping & Notching
- Working Area (X, Y, Z) 400 mm x 200 mm x 150 mm
- Control System 3-Axis NC (Numerical Control)
- Spindle Speed Up to 18,000 RPM (High-Frequency)
- Tool Cooling Automatic Mist Spray Lubrication
- Clamping System 2x Pneumatic Horizontal Clamps (Adjustable)
- Interface Color Touchscreen Control Panel
- Safety Emergency Stop & Interlocked Guarding
- Additional Motor Fourth Motor for Angular cutting
Powered by parametric program templates, programming and operation are faster than ever. The fourth motor adds even more capability, enabling 45° water drainage openings on PVC profiles for complete production flexibility.
Compact yet powerful, the GARNET Mini D brings efficiency, innovation, and precision together helping you achieve superior results in every profile you produce.
Serving Florida fabrication shops from our Miami location.
