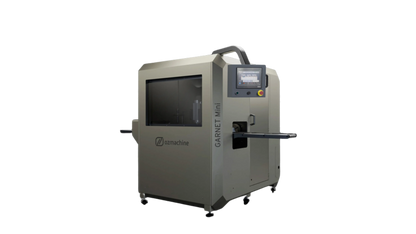

GARNET MINI 3 Axis NC Compact Processing Center
What is the Garnet Mini Processing Center?
The Garnet Mini is a high-speed, compact CNC workstation engineered for the precise milling, drilling, and tapping of aluminum and PVC profiles. Unlike larger through-feed machines, the Garnet Mini is designed for localized machining, making it the ideal solution for preparing window and door hardware holes, lock cases, and handle positions.
GARNET MINI Quick Specs:
- Primary Function Milling, Drilling, Tapping & Notching
- Working Area (X, Y, Z) 400 mm x 200 mm x 150 mm
- Control System 3-Axis NC (Numerical Control)
- Spindle Speed Up to 18,000 RPM (High-Frequency)
- Tool Cooling Automatic Mist Spray Lubrication
- Clamping System 2x Pneumatic Horizontal Clamps (Adjustable)
- Interface Color Touchscreen Control Panel
- Safety Emergency Stop & Interlocked Guarding

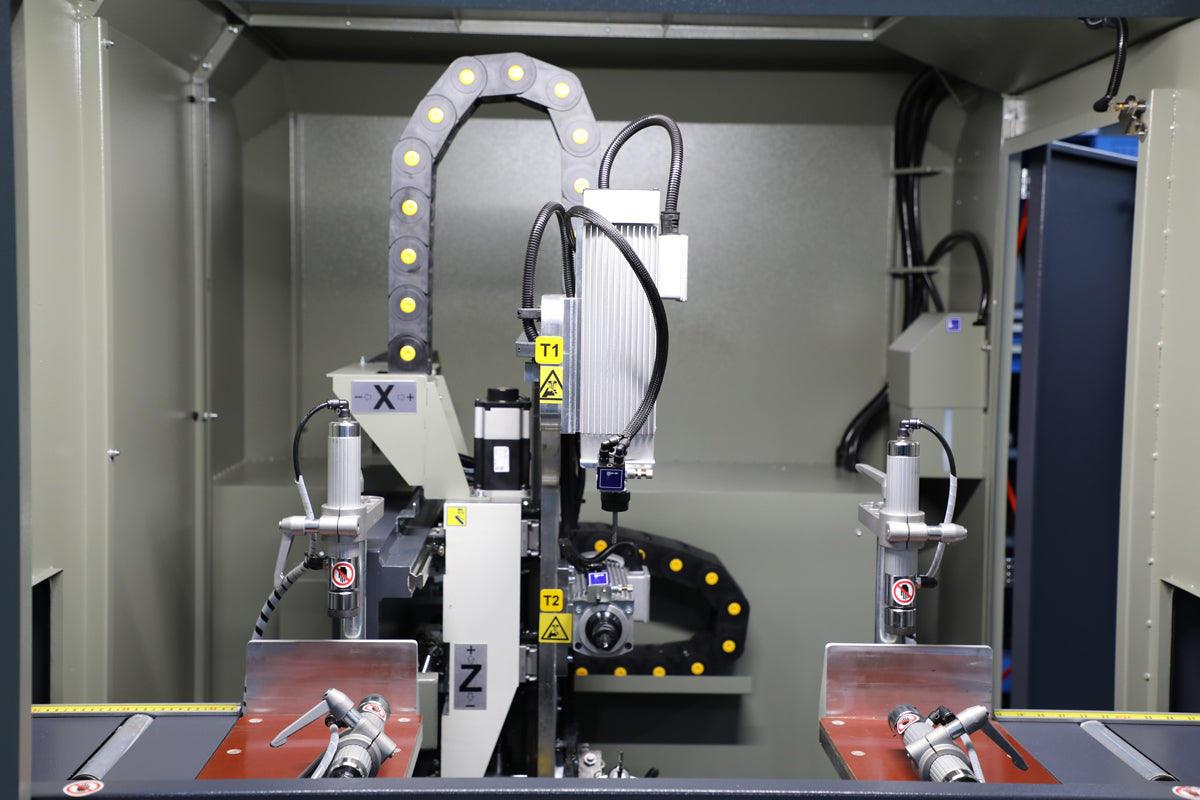

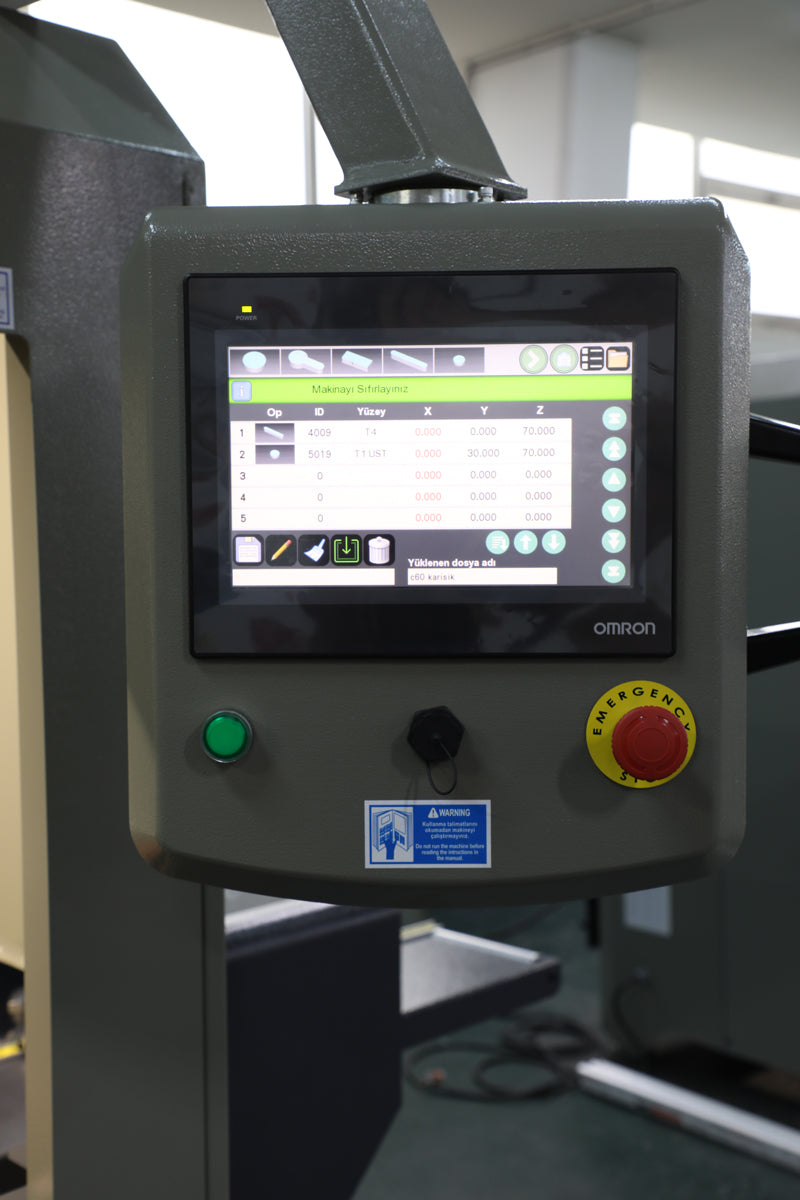

Equipped with an intuitive 10″ touchscreen control unit, the GARNET Mini offers a user-friendly programming interface that simplifies setup and operation. Independent spindle motors allow simultaneous machining on three different surfaces, while laser marking and right-left profile gauges ensure fast, accurate profile positioning and repeatable results.

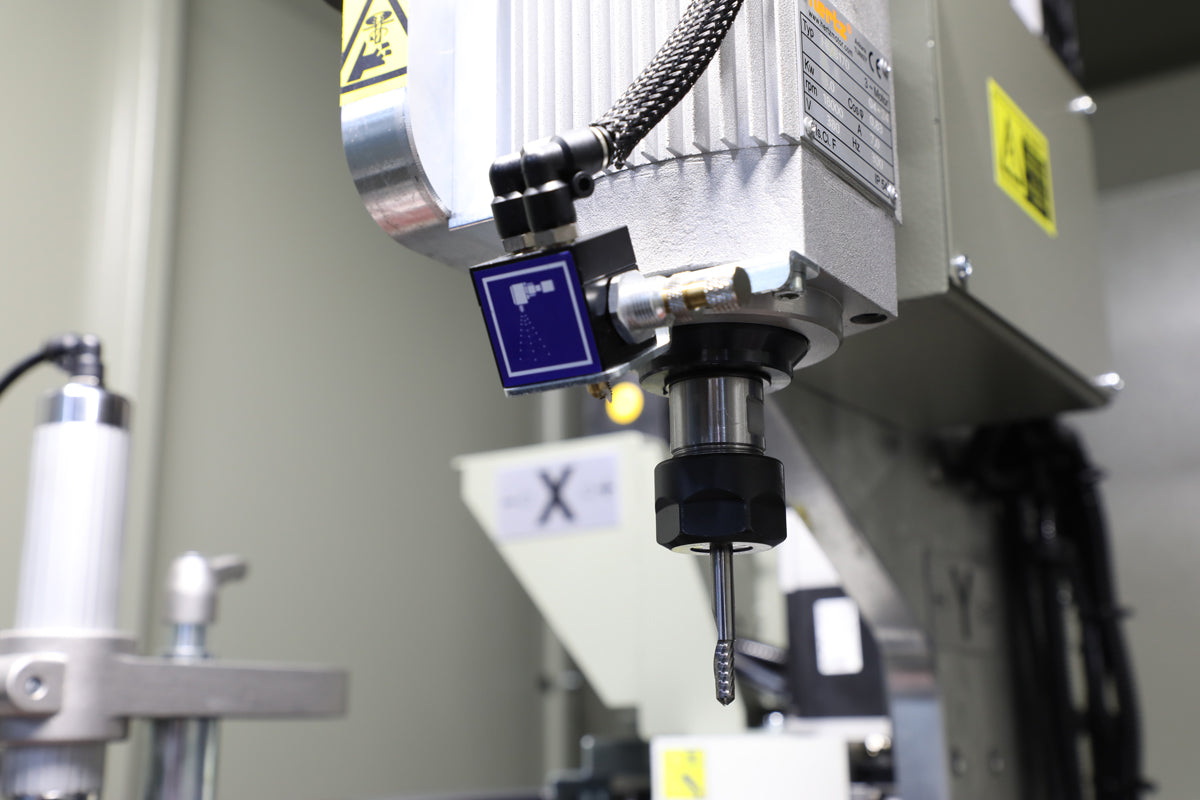

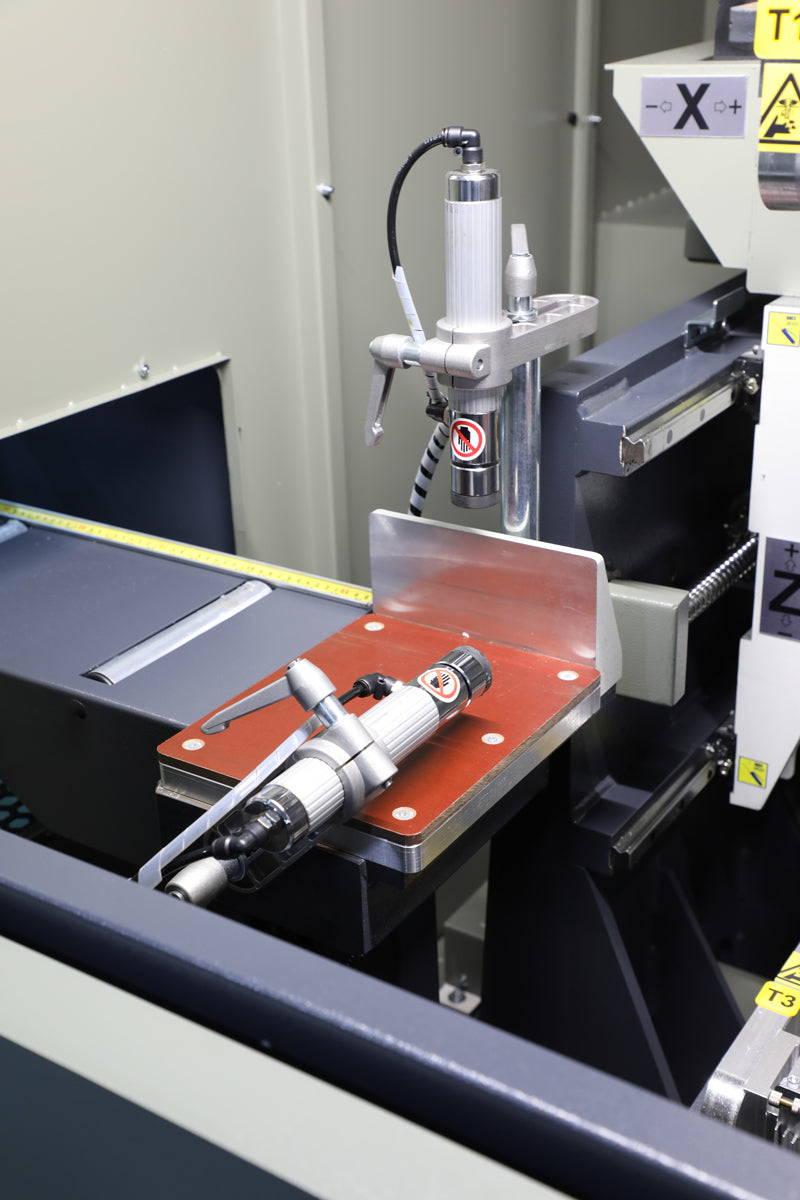

Precision and stability are enhanced through horizontal and vertical pneumatic clamps, securely holding profiles during processing. The machine includes a cooling system, servo-controlled profile support, and multiple milling cutters, with standard support for 5, 6, 8, and 10 mm tools, providing flexibility across a wide range of applications. An optional 45° water slot further expands processing capability.

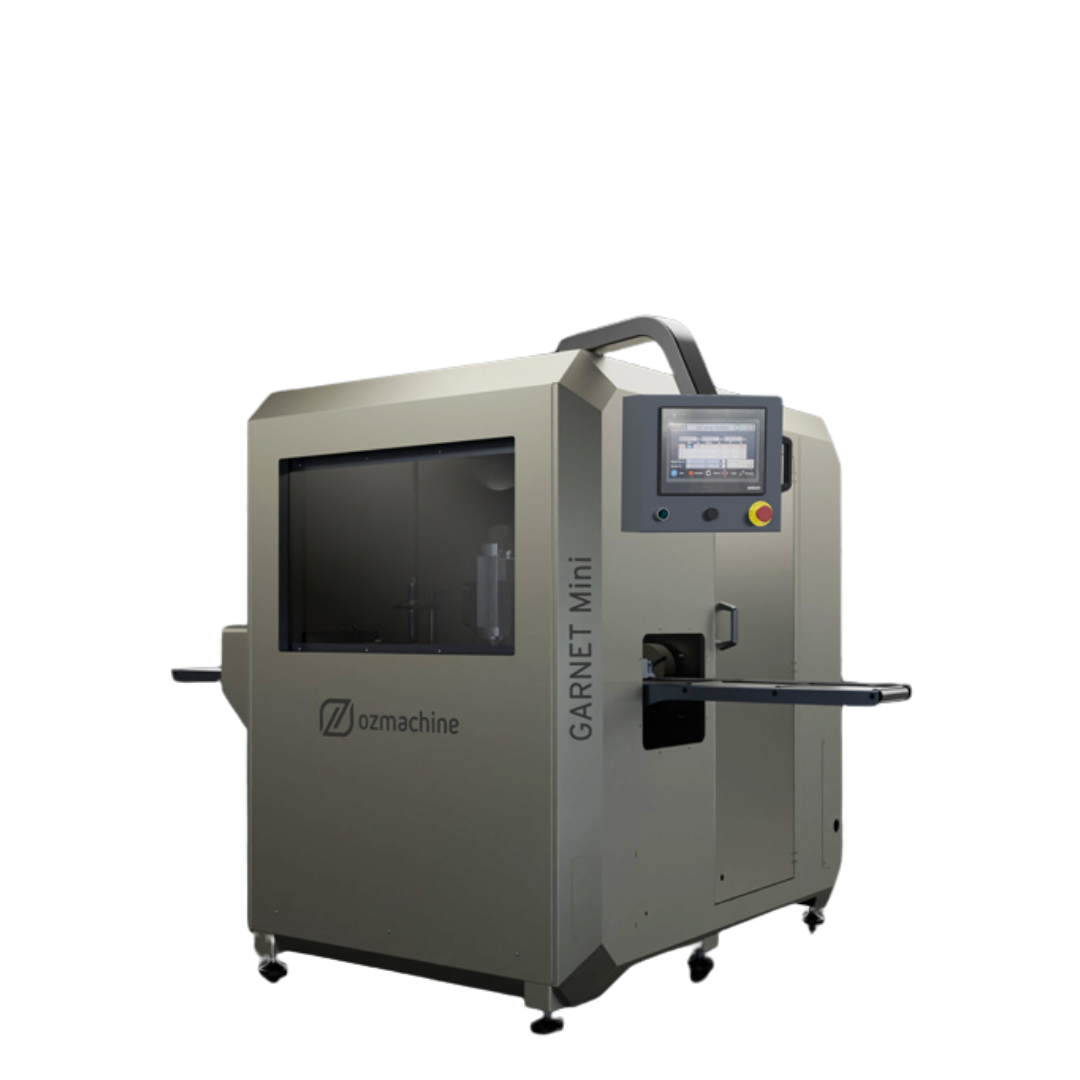

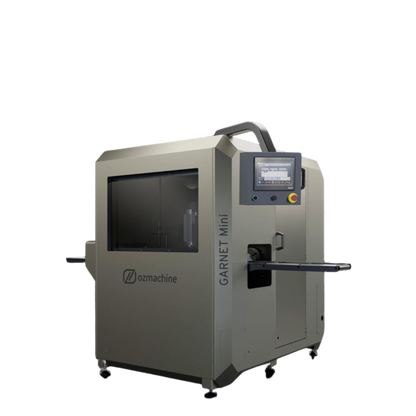

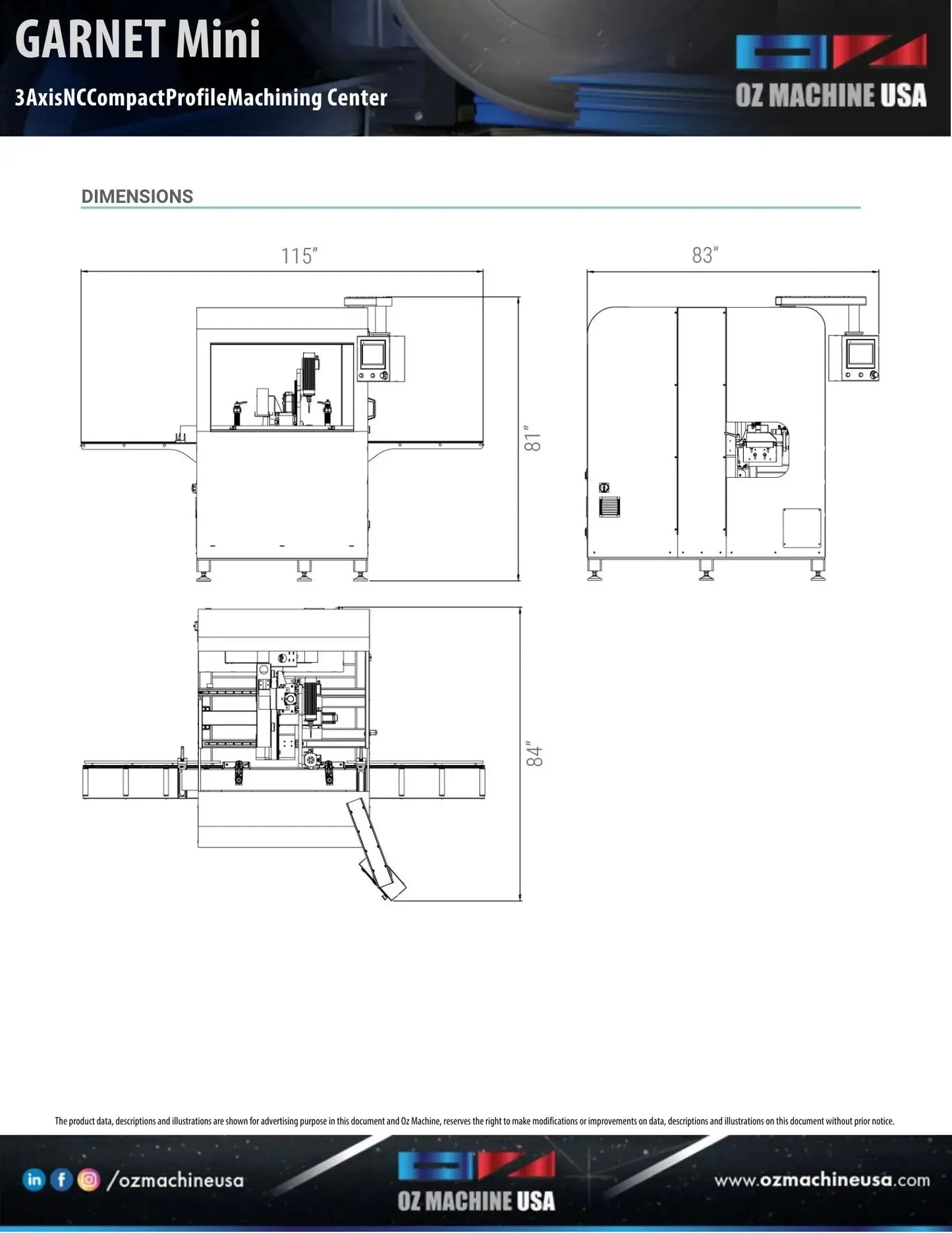

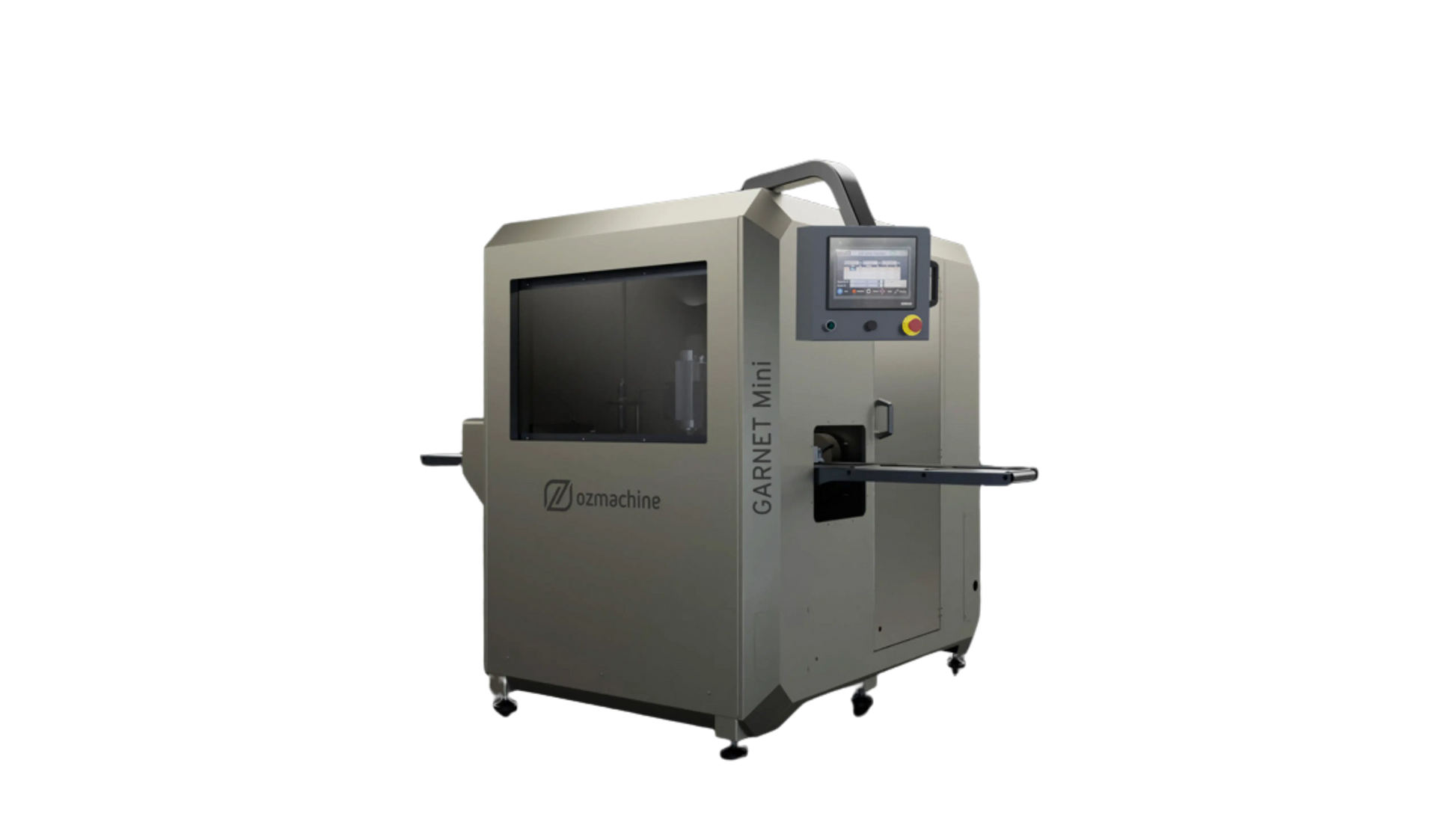

With compact dimensions, high positioning speeds, and a fully enclosed guarded machining area, the GARNET Mini combines efficiency, accuracy, and safety delivering powerful CNC performance in a compact footprint tailored for modern profile fabrication.
Serving Florida fabrication shops from our Miami location. Visit us to see the Garnet Mini in action.
