GARNET 5X CNC MACHINING CENTER
What is the Garnet 5X CNC Machining Center?

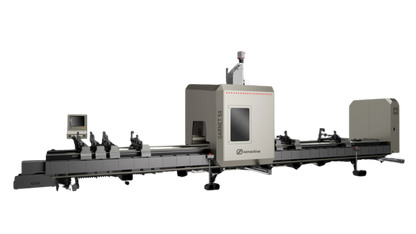

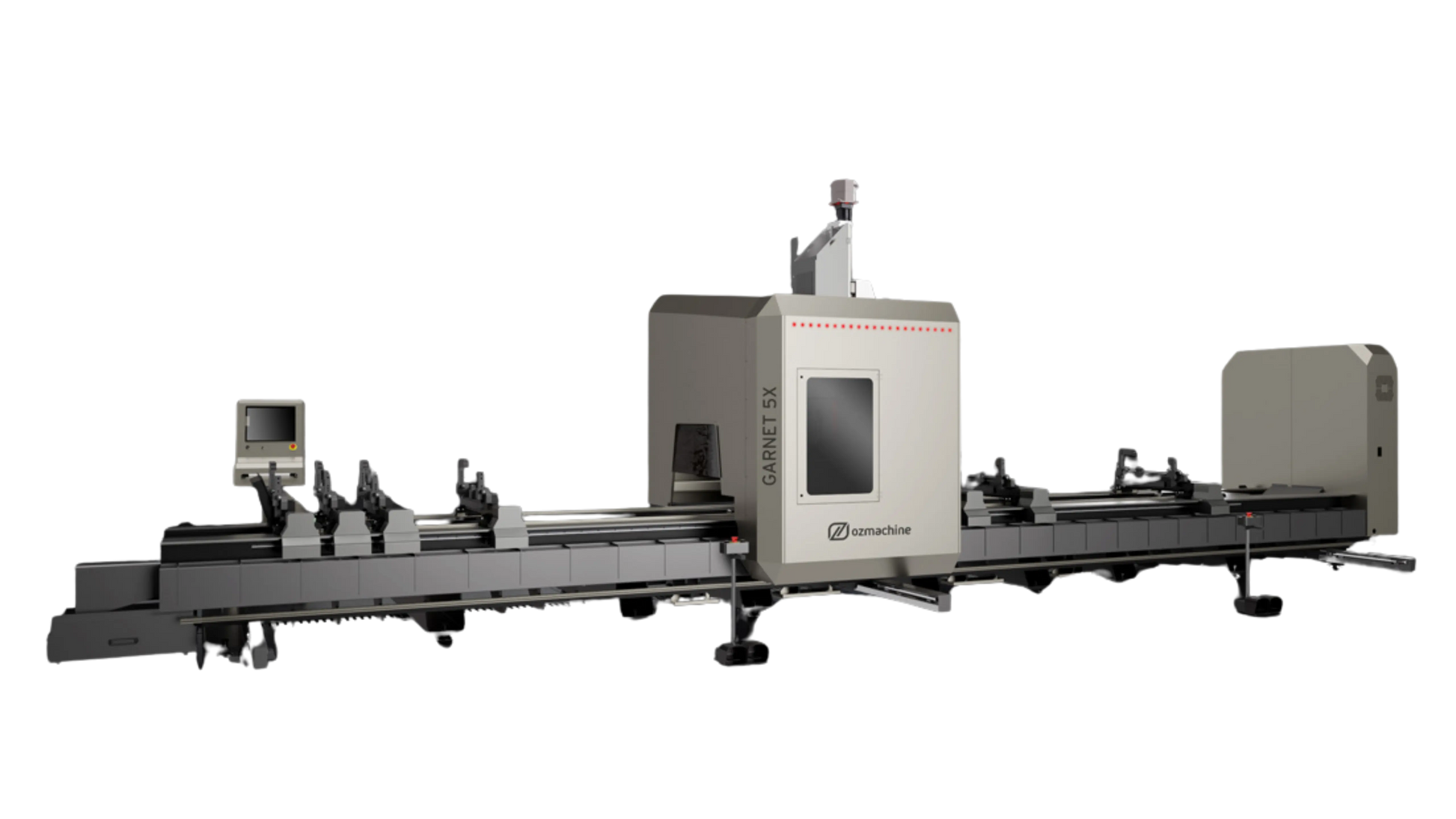

The Garnet 5X is an advanced, 5-axis CNC processing center engineered for the most complex fabrication challenges in the aluminum, PVC, and light alloy industries. While standard CNCs are limited to 90-degree faces, the Garnet 5X features a fully tilting head that can rotate and pivot simultaneously. This allows for continuous 5-axis machining, enabling the tool to perform complex milling, drilling, and "saw-blade" cutting at any compound angle.

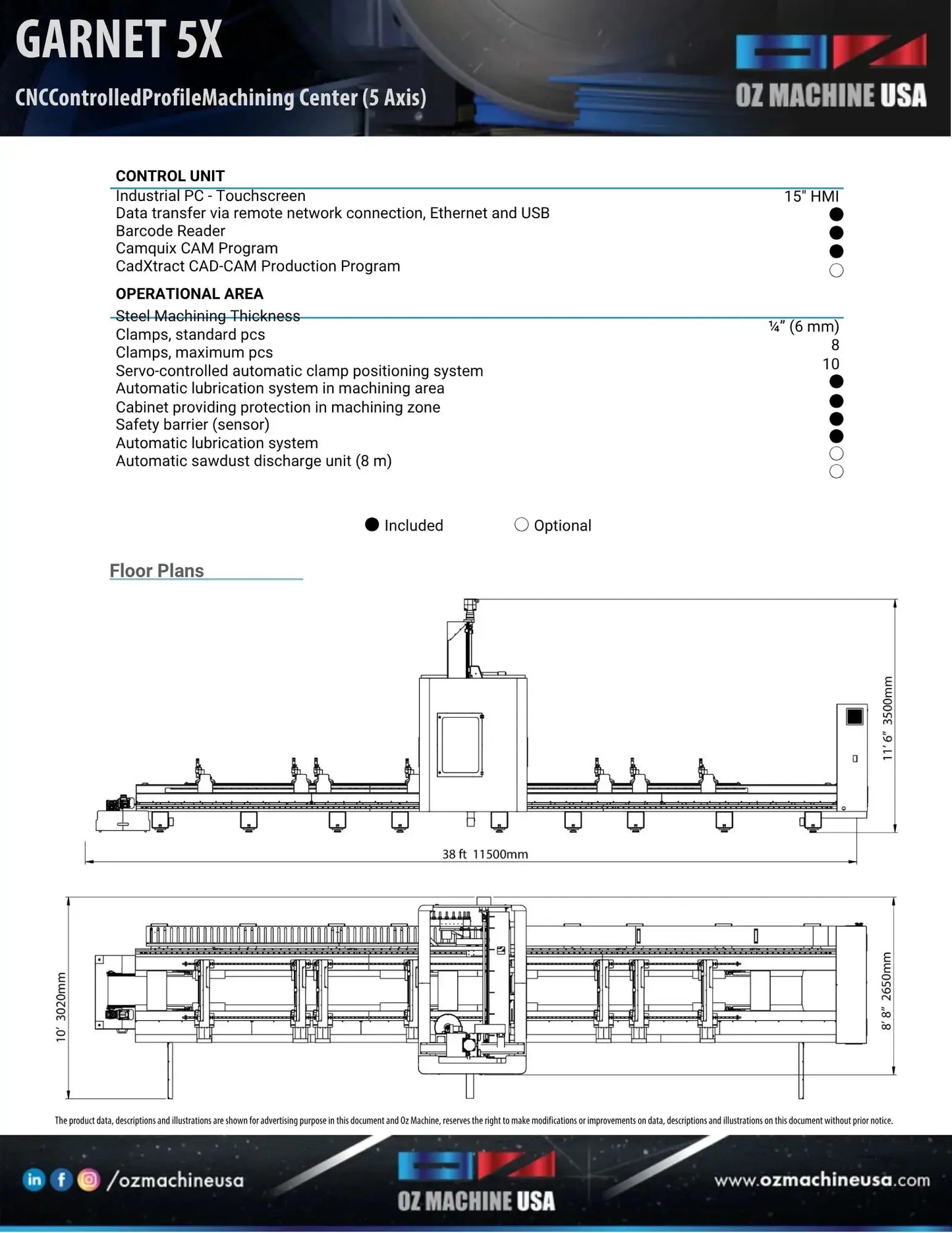

Garnet 5X Quick Specs:
- Machining Axes 5-Axis (X, Y, Z, A, B - Continuous Interpolation)
- X-Axis Travel 4,000 mm to 8,000 mm (Customizable)
- A-Axis (Tilting) -90° to +90° (Continuous)
- B-Axis (Rotation) 0° to 180° (Continuous)
- Spindle Power 7.5 kW to 11 kW (Heavy Duty / Liquid Cooled)
- Spindle Speed Up to 24,000 RPM
- Tool Magazine12-Slot Automatic Rotary/Linear Magazine
- Positioning Speed 100 m/min (X-Axis)
- Work Mode Single Station or Dual-Zone Pendulum Machining
- Software Support Full 5-Axis CAM Integration (Camquix / CadXtract)
GARNET 5X CNC MACHINING CENTER is a high-performance 5-axis CNC profile machining center engineered to deliver unmatched flexibility, power, and precision for processing aluminum, PVC, light alloys, and steel profiles of virtually any size. Equipped with a fully articulating spindle capable of continuous 360° rotation on the C-axis and 0° to 180° movement on the A-axis, the GARNET 5X enables true multi-angle machining making even the most complex, non-standard profiles easy to process in a single setup.
Designed as a versatile all-in-one machining solution, the GARNET 5X performs cutting, drainage channel opening, drilling, marking, notching, and tapping with exceptional accuracy and efficiency. Its large 515 × 370 mm working area, combined with expandable machining lengths up to 20 meters and beyond, maximizes productivity while minimizing repositioning and setup time.
At the core of the system is a powerful 11 kW spindle motor (upgradeable to 16 kW) with automatic tool replacement, delivering the strength and precision required for demanding applications. A gantry-mounted automatic umbrella-type tool magazine with 20+1 tool capacity enables rapid tool changes, significantly reducing cycle times during multi-operation workflows. High-speed axis movements further enhance efficiency, allowing continuous, high-output production.
To reduce operator workload and ensure consistent accuracy, the GARNET 5X features a servo-controlled automatic clamp positioning system, adaptable to both standard and non-standard profiles with on-demand optimization of clamp number and placement. An optional automatic lubrication system maintains transmission components and axes, extending service life and preserving long-term precision. With advanced safety features, a fully enclosed processing cabinet, and intelligent automation throughout, the GARNET 5X delivers maximum machining freedom where productivity is limited only by the user’s imagination.
