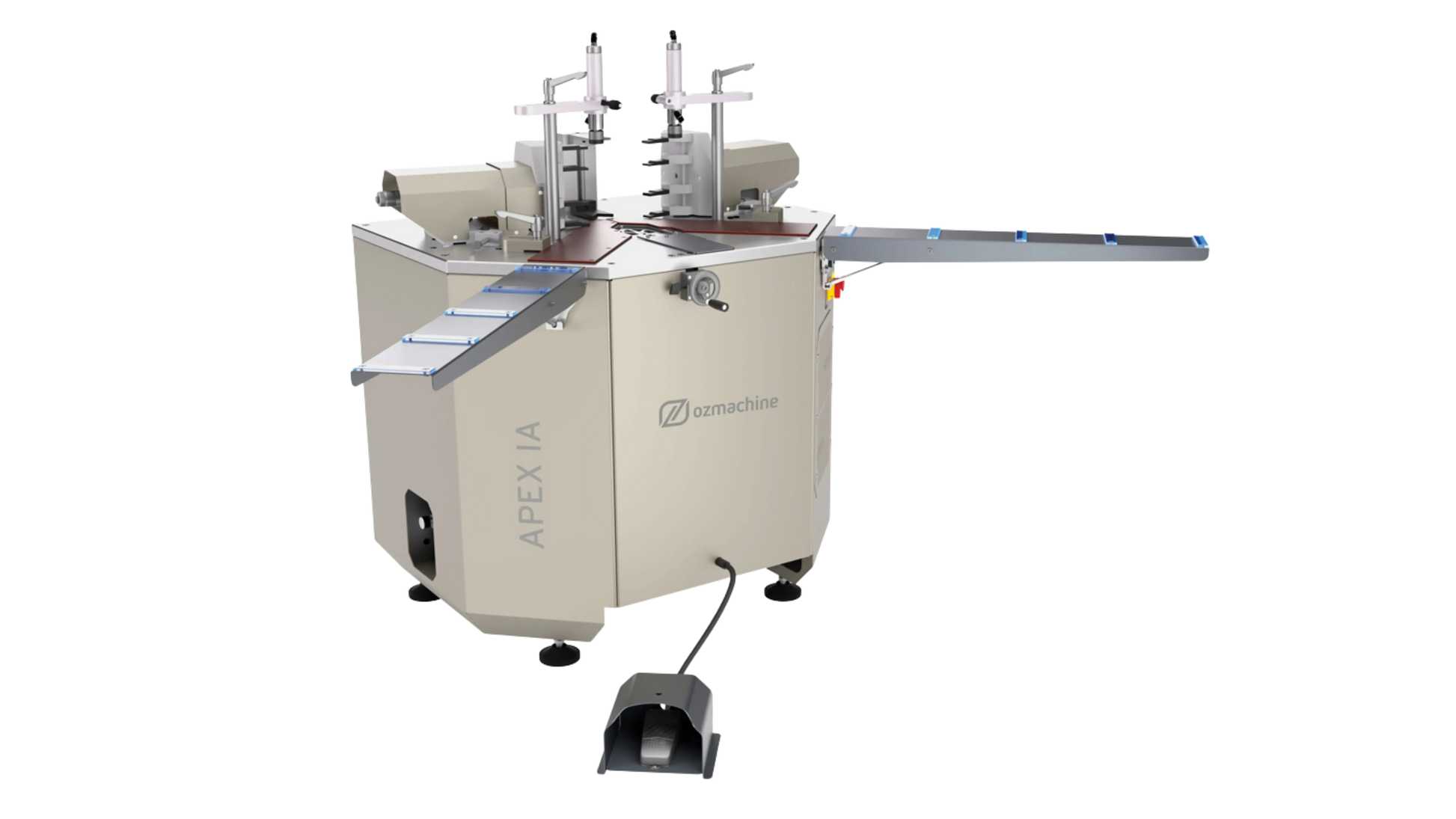

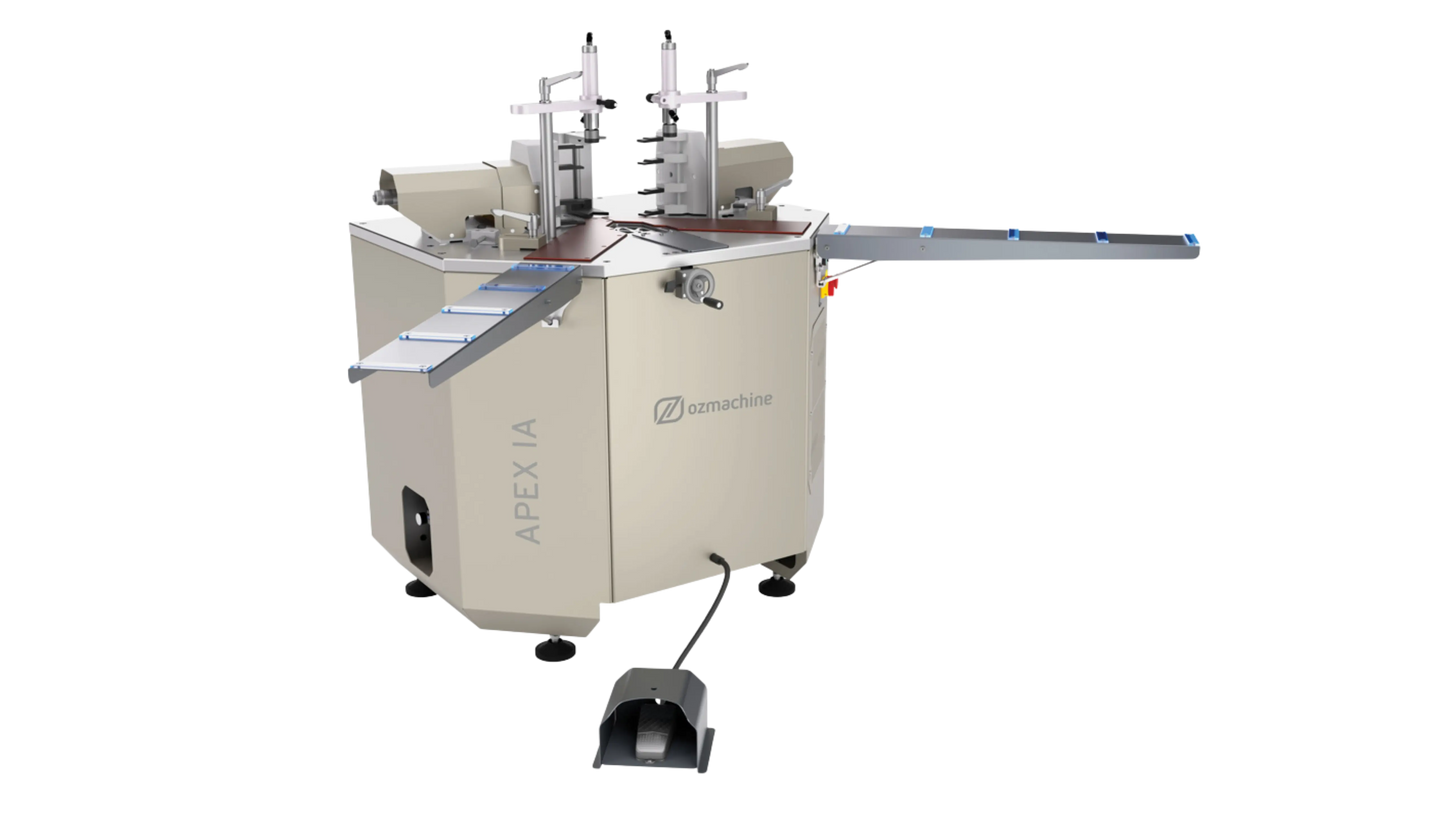

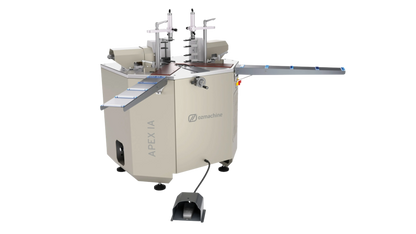

APEX I A Automatic Corner Crimping Machine

What is the Apex I-A Automatic Corner Crimping Machine?

The Apex I-A is a high-pressure hydraulic corner crimping machine engineered for the structural joining of aluminum window and door profiles. It utilizes a 5-ton (5,000 kg) hydraulic press system to drive hardened steel blades into profile corners, creating a permanent, seamless bond. Key features include adjustable crimping heights, a retractable centering square, and a dual-foot pedal operation for maximum safety and precision.

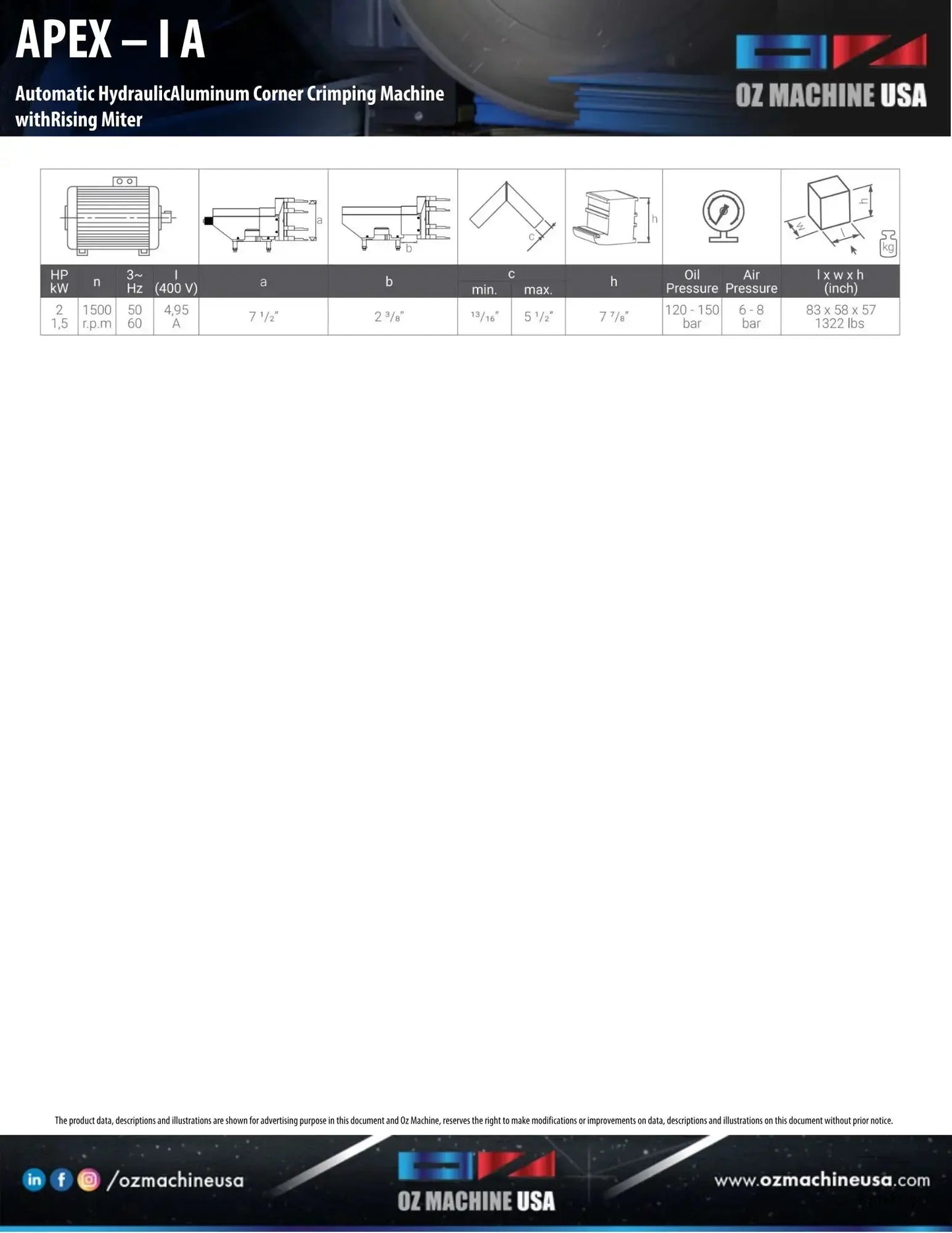

APEX I A Quick Specs:

  • Joining Force 5,000 kg (5 Tons) Hydraulic
  • Max Crimping Height 140 mm (5.5 inches)
  • Operating System Hydraulic Pump with PLC Control
  • Clamping Pneumatic Vertical Clamps (Automatic)
  • Centering Retractable Internal Mitre Square
  • Adjustability Fully Adjustable Blade Position & Depth

APEX I A Automatic Hydraulic Aluminum Corner Crimping Machine is an automatic hydraulic aluminum corner crimping machine designed to deliver strong, precise, and consistent corner joints for aluminum profiles. Featuring a rising miter system, it ensures accurate alignment and superior crimping quality, even on wide and high-profile sections.

Built with a high-pressure–resistant steel plate construction and a powerful hydraulic operating system, the APEX–I A provides stable, reliable performance in demanding production environments. Automatic profile centering with miters and convenient profile rotation via the up/down movement of the centering miter simplify setup while reducing operator effort and error.

The machine allows easy adjustment of crimping blade distances according to profile geometry, ensuring optimal force application and clean corner joints. Supplied with both 7 mm and 5 mm crimping blade sets (each consisting of four blades), it offers flexibility for a wide range of aluminum profile designs. Left and right profile supports further enhance stability during operation.

With its combination of hydraulic power, intelligent alignment, and adaptable tooling including custom-profile crimping sets as standard equipment the APEX–I A delivers dependable, high-quality corner crimping for modern aluminum fabrication lines.

Serving Florida fabrication shops from our Miami location. Visit us to see the Apex I A in action.
