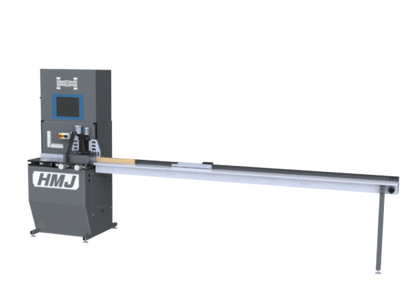

Haunching Machine for Beaded Face Framing

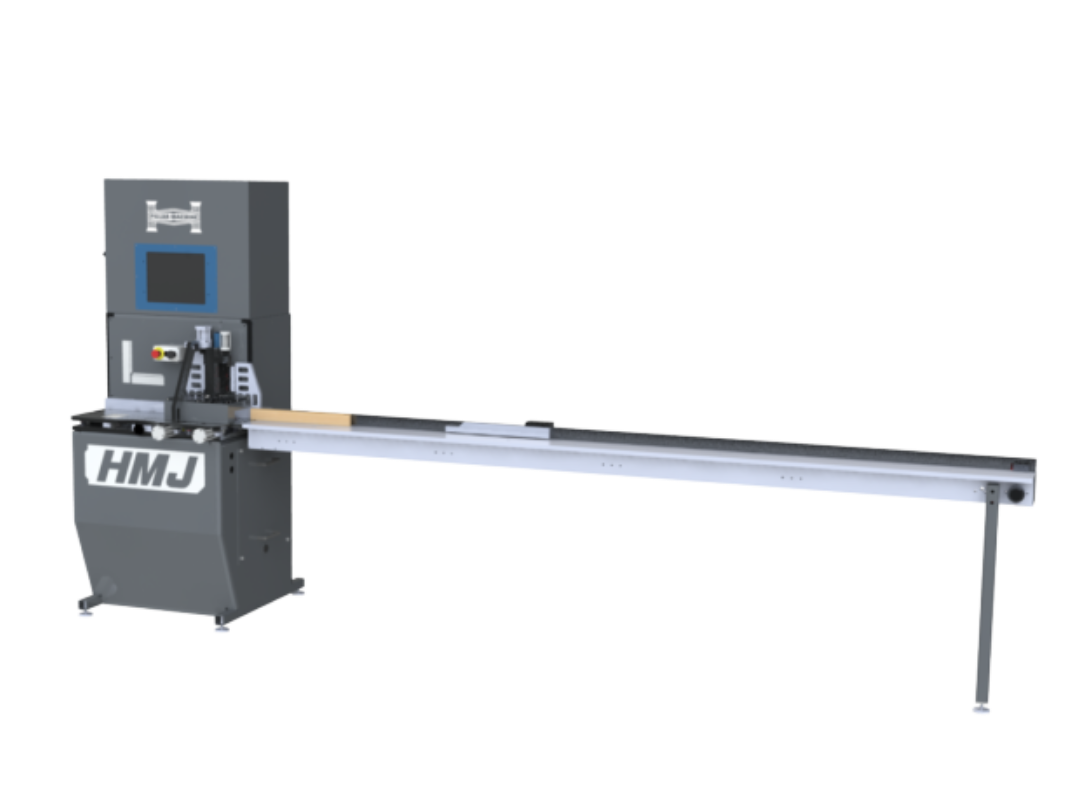

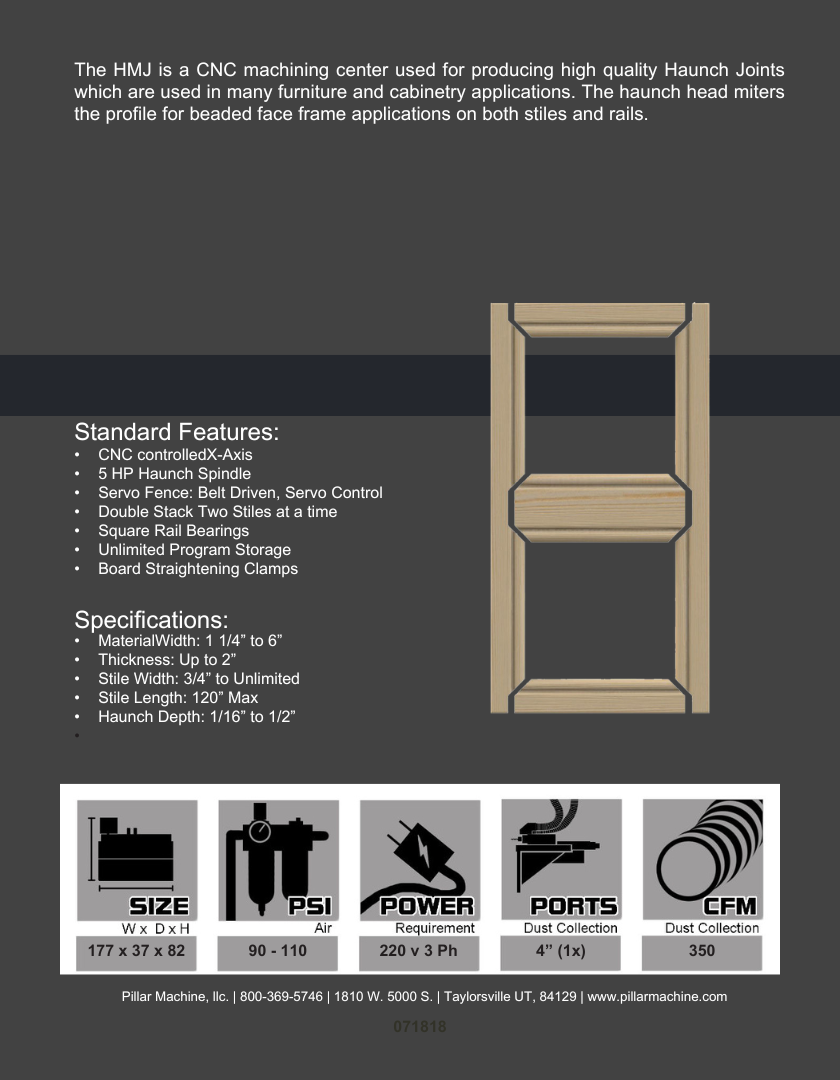

The HMJ is a CNC machining center used for producing high quality Haunch Joints

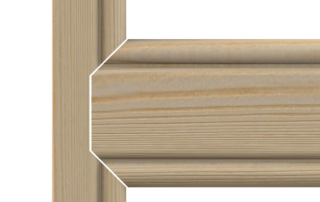

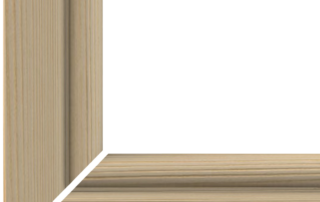

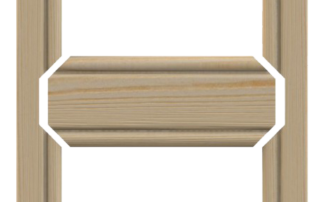

which are used in many furniture and cabinetry applications. The haunch head miters
the profile for beaded face frame applications on both stiles and rails.
Standard Features:
• CNC controlled X-Axis

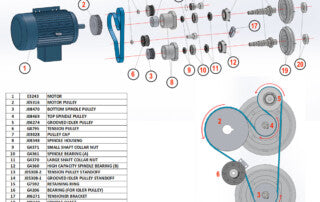

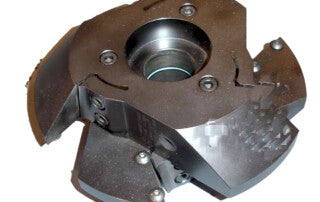

• 5 HP Haunch Spindle
• Servo Fence: Belt Driven, Servo Control
• Double Stack Two Stiles at a time
• Square Rail Bearings
• Unlimited Program Storage
• Board Straightening Clamps

Specifications:
• Material Width: 1 1/4” to 6”
• Thickness: Up to 2”
• Stile Width: 3/4” to Unlimited
• Stile Length: 120” Max
• Haunch Depth: 1/16” to 1/2”
