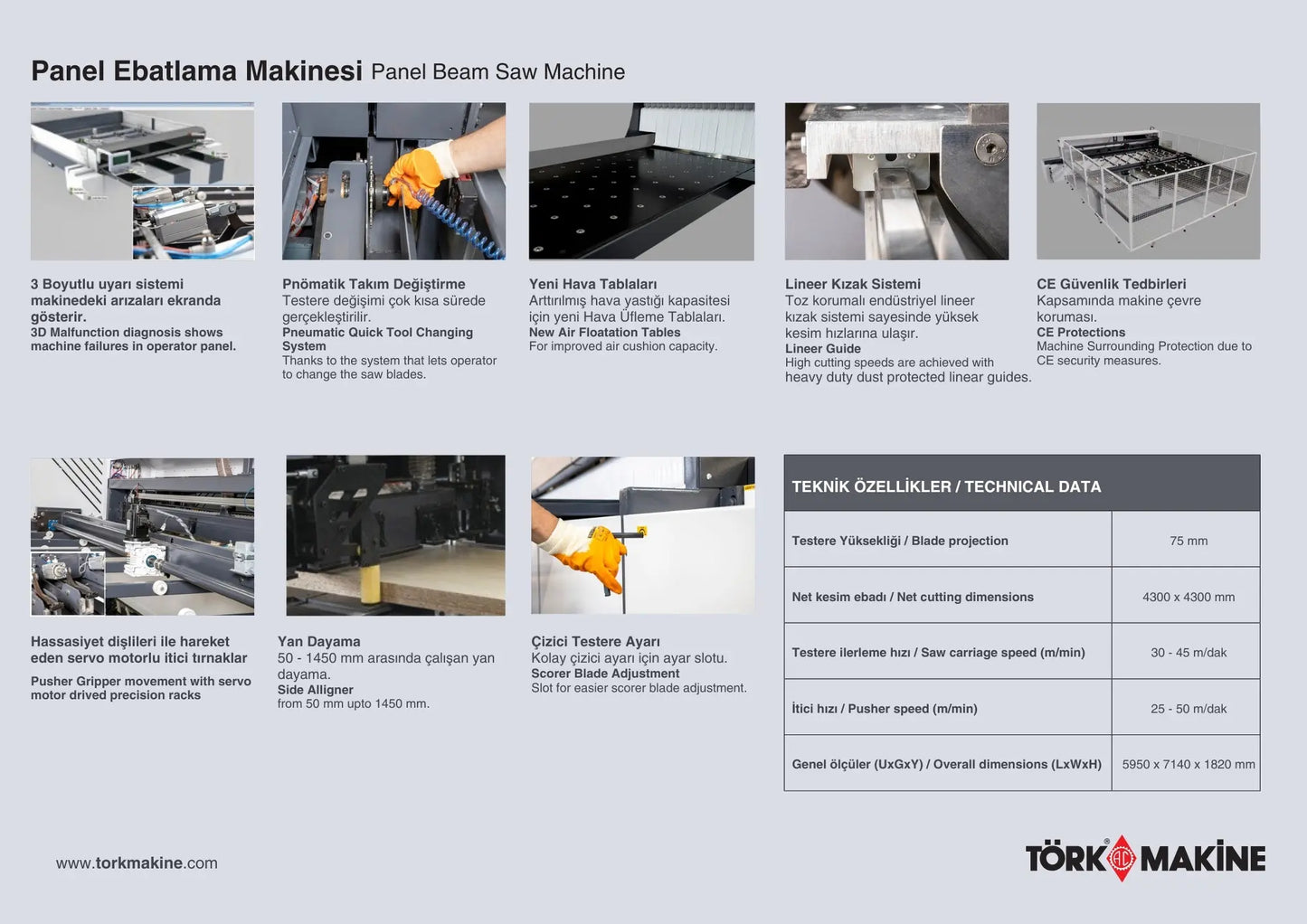

The Masterpanel MP 75 S Panel beam saw machine integrates a range of advanced, operator-friendly features designed to enhance cutting precision, speed, safety, and overall workflow efficiency across all production environments.
Its 3D Malfunction Diagnosis System displays faults directly on the operator panel, allowing clear, visual identification of issues for rapid troubleshooting. To reduce downtime during blade changes, the Pneumatic Quick Tool Changing System enables operators to replace saw blades swiftly and safely without manual struggle.
Material handling is improved with New Air Floatation Tables, which provide increased air cushion capacity for smoother panel movement and reduced surface friction. High-speed cutting performance is achieved through Heavy-Duty, Dust-Protected Linear Guides, ensuring long-term durability and stable motion while operating at elevated feed speeds.
Safety standards are reinforced through full CE-Compliant Protective Enclosures, providing complete machine perimeter protection. Precise material positioning is ensured by a Servo-Driven Pusher Gripper, which moves along precision racks for accurate and repeatable feeding. Supporting this system is the Side Alligner, capable of positioning panels from 50 mm up to 1450 mm for perfect squaring before cutting.
Blade adjustments are made easier with the dedicated Scorer Blade Adjustment Slot, allowing fine tuning with minimal effort. Cutting accuracy is further enhanced by Automatic Height Adjustment of the Main Saw, which uses intelligent positioning to set the correct blade projection based on workpiece thickness.
Fine scoring control is provided by the HMI-Adjustable, Servo-Controlled Scoring Saw, where cutting depth is set through the operator panel with micrometric precision, ensuring flawless surfaces and chip-free edges.
Together, these features create a cutting system built for speed, precision, ease of maintenance, and superior operator convenience resulting in consistently high-quality output and efficient production workflow.
