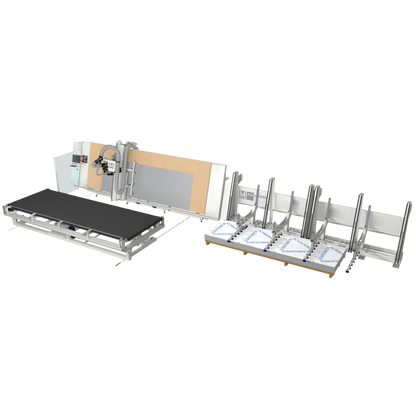

Muratori Integrated working cells

The high productivity of the Ranger CNC, already guaranteed by the combination of the best tools, suitable for each different material, can be increased thanks to Loader, the patented automatic panel loading and positioning system without an operator, and thanks to the possibility of also automatically controlling unloading, with Off Loader, the patented vacuum table covered by a breathable cloth. The integrated work cell-loading, processing, unloading-can be controlled and supervised by a single operator.

The automation integrated in Loader and Off Loader and their ergonomics, avoid operator fatigue and allow sustained work rates, to increase the daily productivity of the integrated working cell

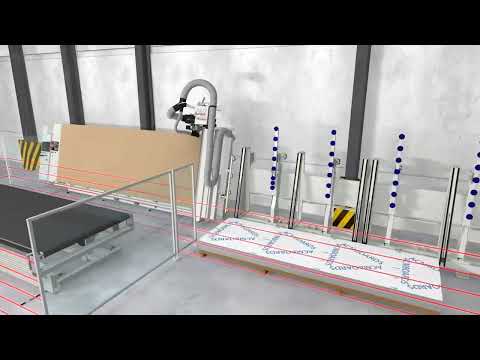

Off loading procedure starts automatically.
Off Loader table tilting and approaching towards Ranger

Off Loader completes the approach laying to the processed panels.
The vacuum holding of the panes switches between the Panel Router and the Off Loader

Off Loader returns into horizontal position while moving back away from the panel router. Once the light curtains are unengaged the Ranger commands Alu Feeder to load the next panel.
During this phase Ranger and Loader safety light curtains are active.

The operator can pick up the panels from Off Loader table.
The feeding of the mat can be activated by a pedal therefore the panels can easily be reached by the operator.
