Muratori OFF LOADER
Muratori OFF LOADER
Regular price
Sale price
Off Loader

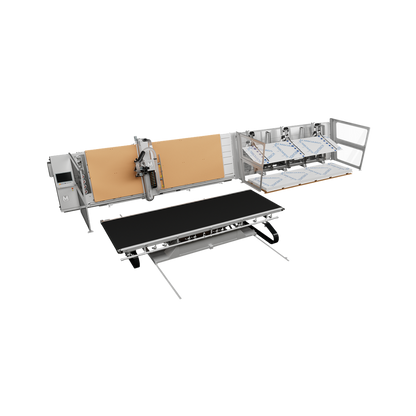

The Off Loader (Patent Pending) is a vacuumed table covered by a transpiring mat.
The table is attached to a carriage that can move in/out in regards to the Ranger’s table.
The vacuumed table lifts and tilts up to being parallel to the table of the Ranger, after that it moves against it to capture all the panels previously processed.
When the table of the Off Loader presses against the panels a certain amount of valves are pressed, consequently all panels captured by the vacuum. The vacuum of the machine releases.
Off Loader then moves away from the machine while the table returns horizontal.
When the table is perfectly flat the operator can activate the mat by a pedal to feed the panels to his position for the picking up.
The Ranger is then ready to feed on the working table the next panel previously loaded by the Loader (Patented).
Machine Features
Greater Automation
Automatic panel off-loader without operator: the vacuum table rises and tilts until it is parallel to the Alu Ranger’s worktable. It then moves until it rests on the worktable where machined panels are still held in position by the vacuum action of the worktable.
Greater productivity
Off Loader’s integrated automation and ergonomics prevent operator fatigue and allow high paces of work so as to increase daily productivity.
Workable materials
Finished products achievable
Operating sectors
