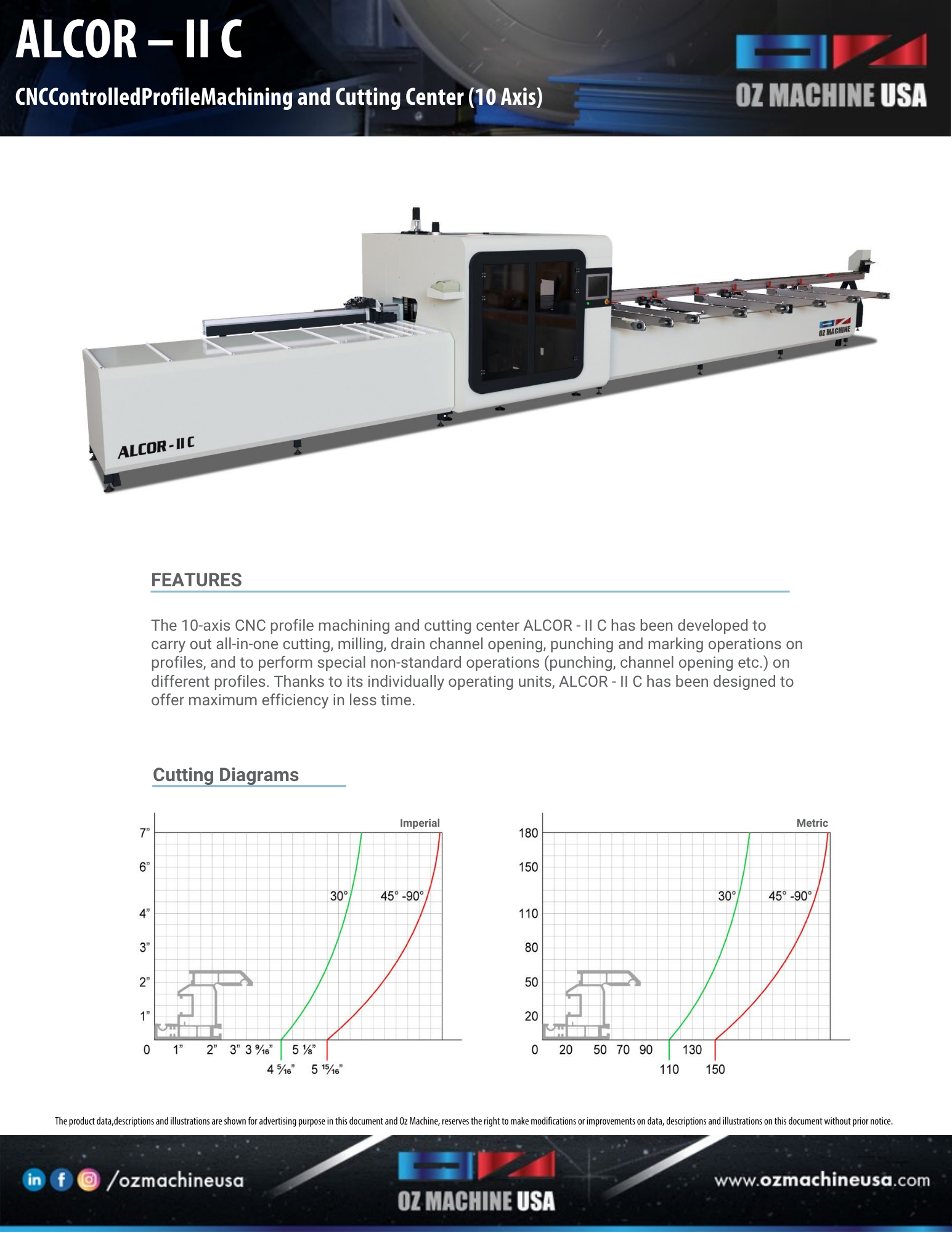

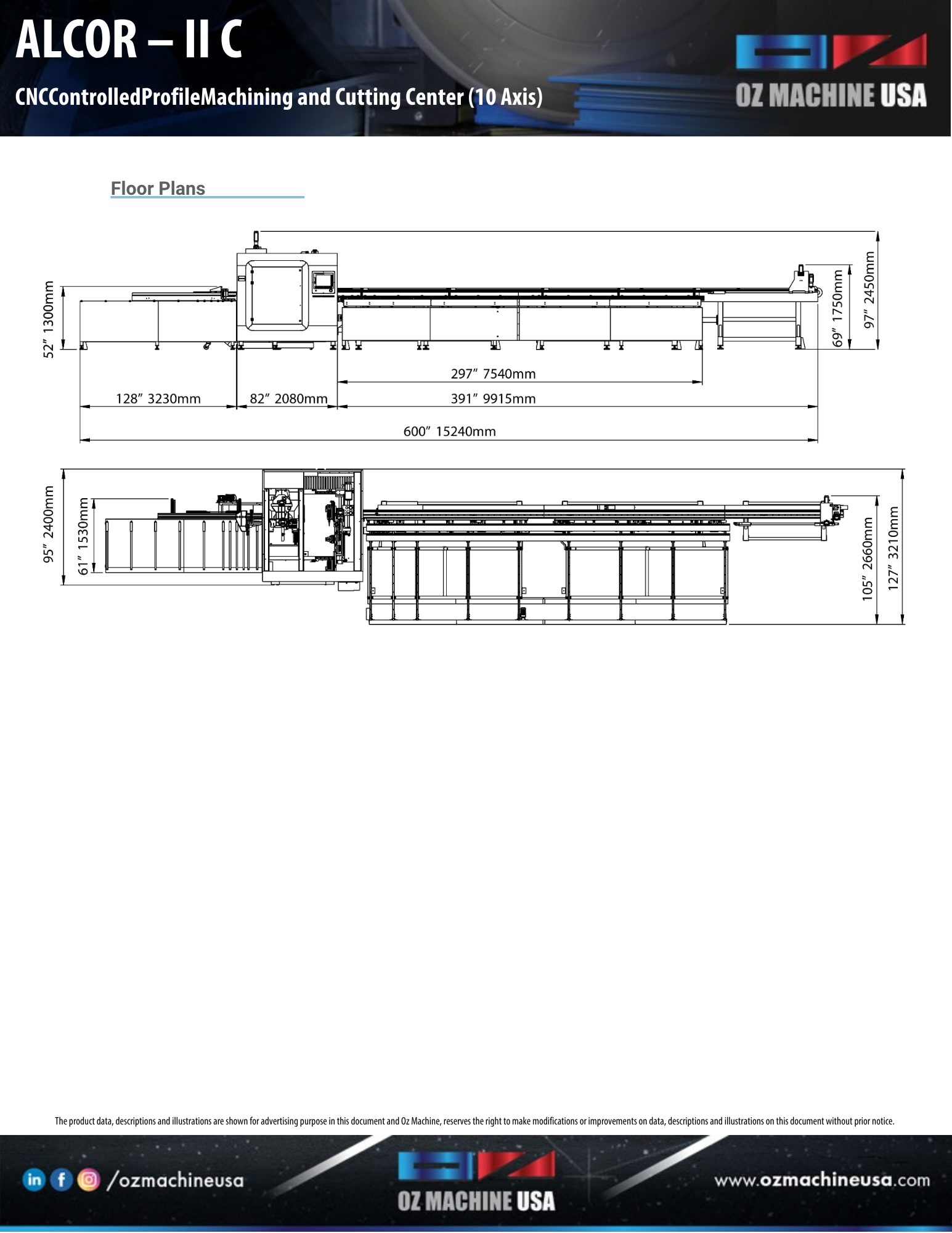

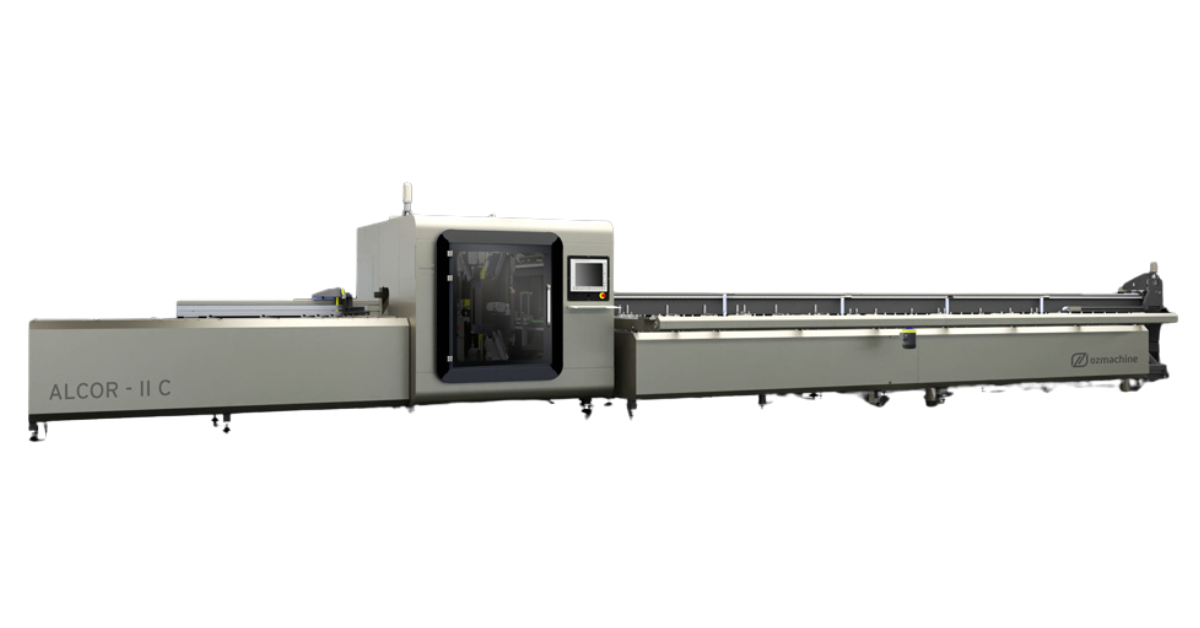

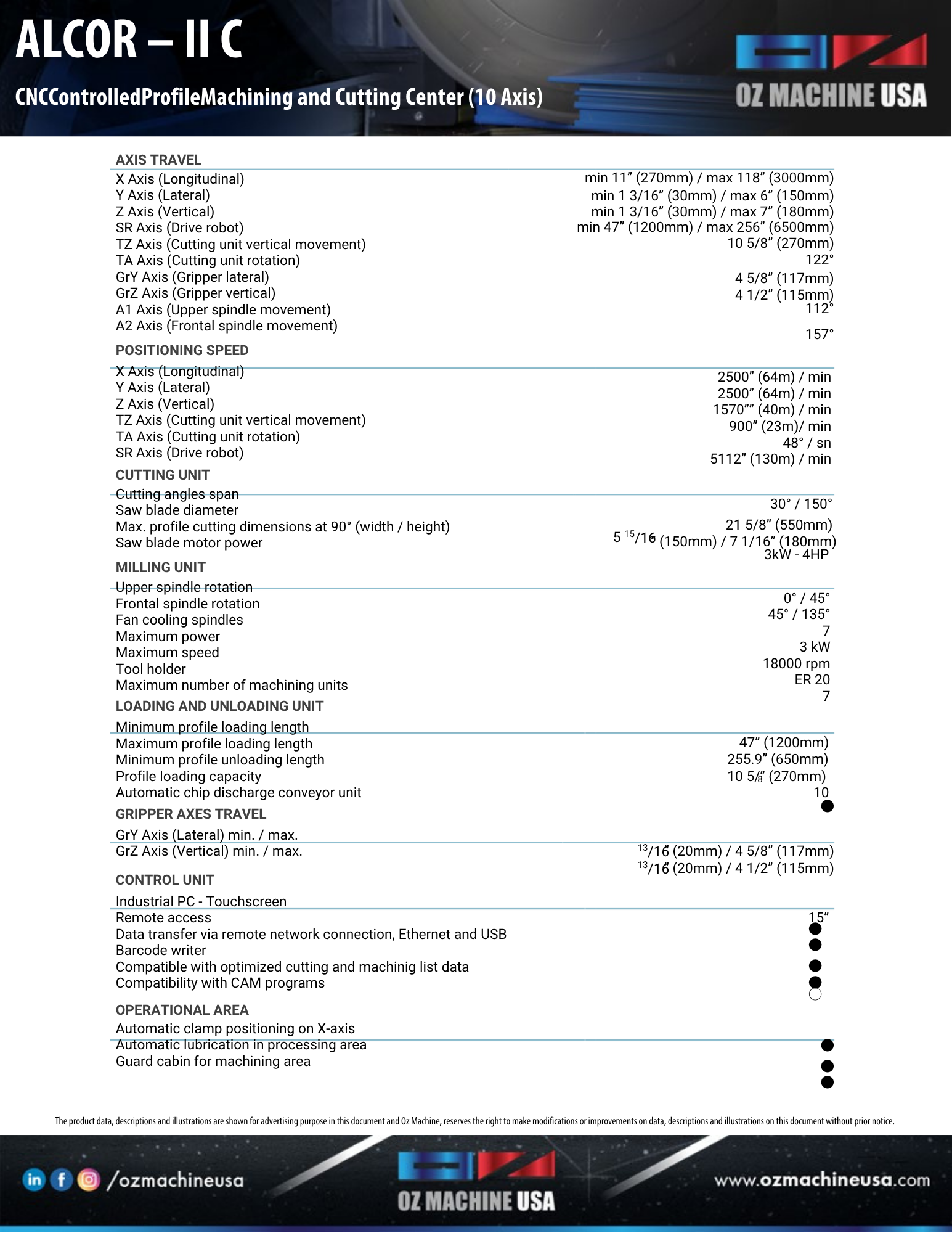

ALCOR - II C CNC Controlled Profile Machining and Cutting Center (10 Axis)

ALCOR - II C CNC Controlled Profile Machining and Cutting Center (10 Axis)

The servo 8-axis CNC profile profile machining and cutting center ALCOR – II C has been developed to carry out all-in-one cutting, milling, drain channel opening, punching and marking operations on profiles, and to perform special non-standard operations (punching, channel opening etc.) on different profiles. Thanks to its individually operating units, ALCOR – II C has been designed to offer maximum efficiency in less time.

7 units of fan cooled spindle motors that can function and be positioned as different angles enables an unlimited operational capability on 4 surfaces of the profile.

Thanks to the feeding capacity of 10 profiles, the conveyor structure enables batch processing, letting the machine to be used in the most efficient manner.

The cutting unit with a 550 mm diameter saw blade for cutting at every angle between 30° and 150° offers a wide cutting range to users.
