Allows operator to safely position glass prior to contact with the sealant or tape
Weight capacity of up to 600 pounds.
Eliminates sealant or tape "roll-off" caused by setting glass vertically
Allows IG units to be lowered evenly and consistently
Maintains seal integrity by positioning unit correctly
Avoids scallops and cracks caused by prying unit into position
Two-hand safety feature available as an option
Standard Sizes Available:
84" x 72"
96" x 60"
120" x 72"
120" x 84"

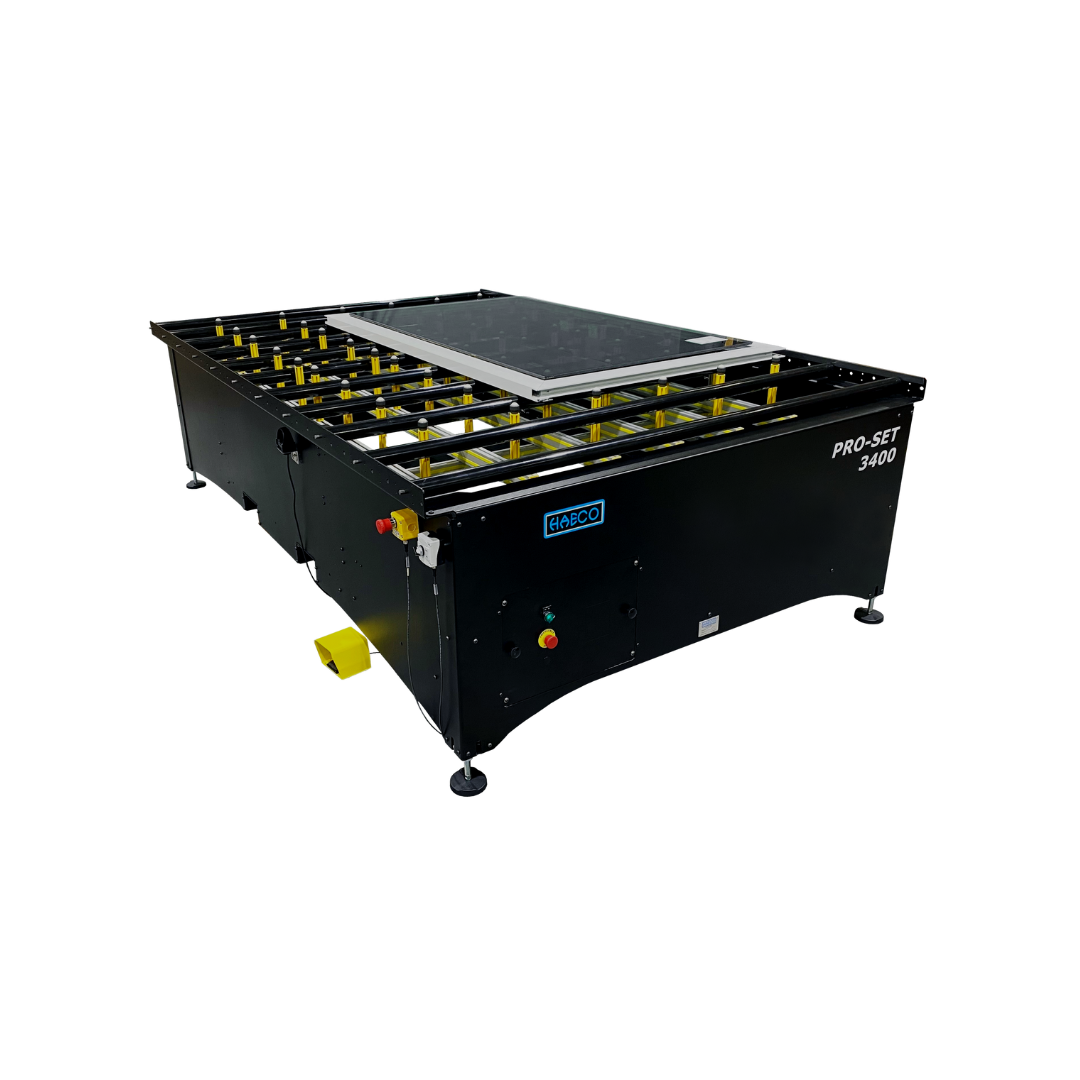

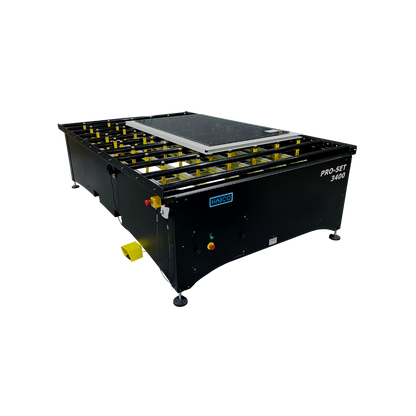

The HAECO PRO-SETallows you to evenly and safely set your IG units into the frame. The operator selects the profile height to be processed then raises the "lift-fingers" by use of a touch switch. The IG unit is positioned over the profile via the roller supports resting just above the profile allowing the operator to verify proper alignment of the IG prior to setting. Final setting of the IG is accomplished with the press of a foot switch that slowly lowers the unit into the sealant bed. The unit is now ready to be trimmed-out and cleaned.
