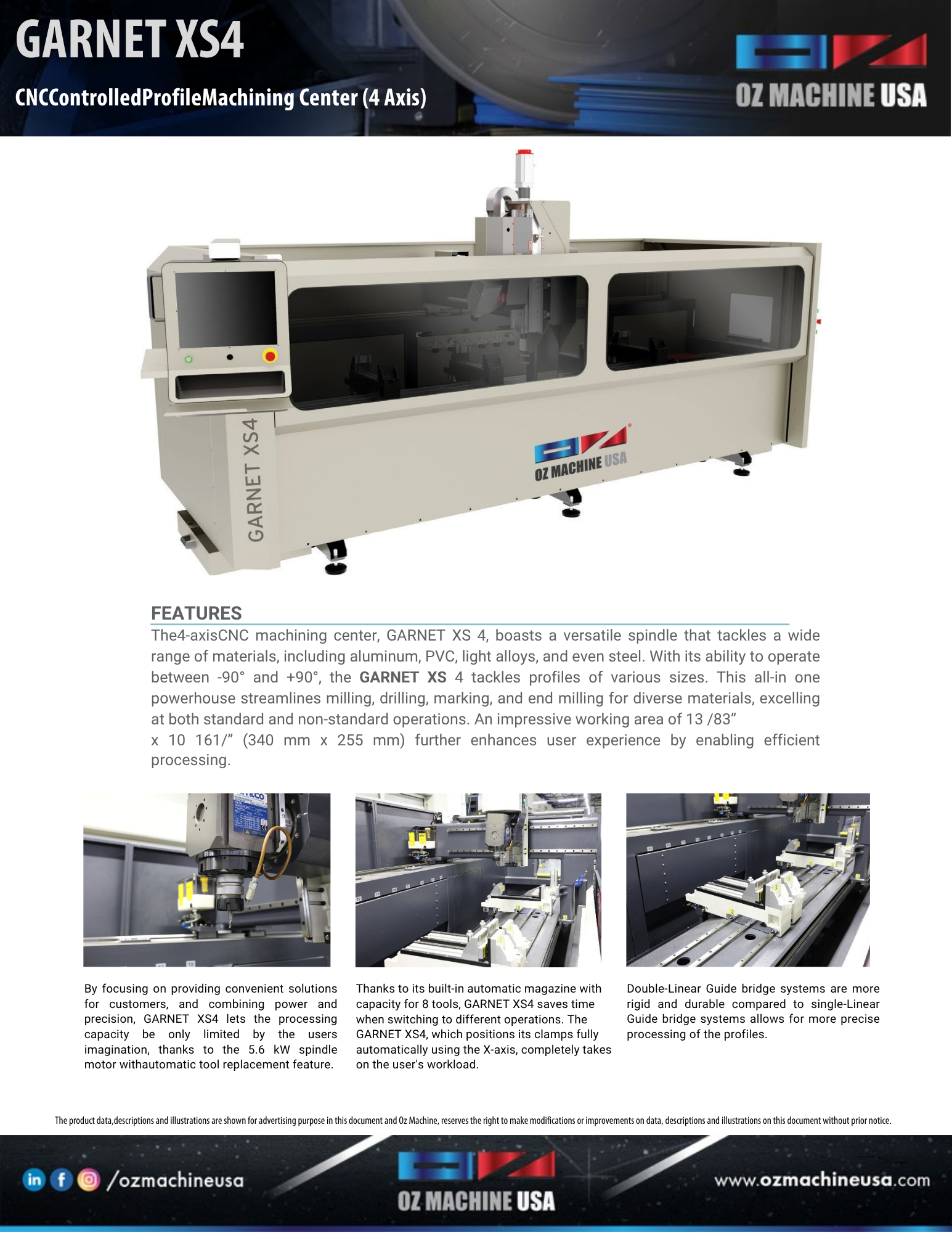

GARNET XS4 CNC Machining Center

GARNET XS4 CNC Controlled Profile Machining Center (4 Axis)

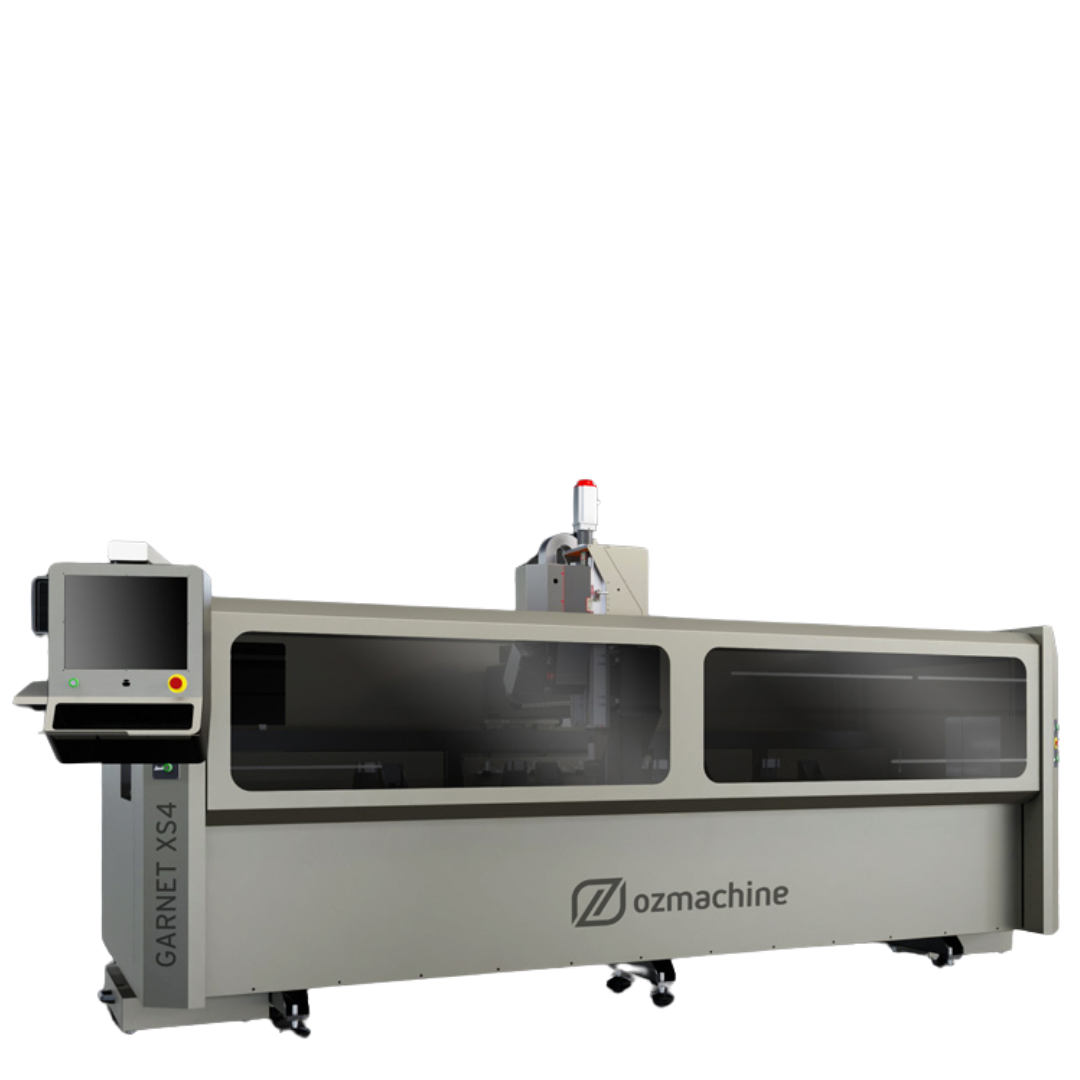

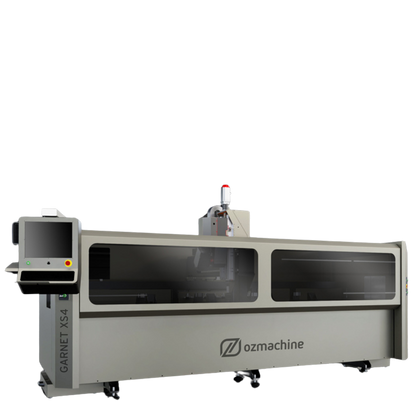

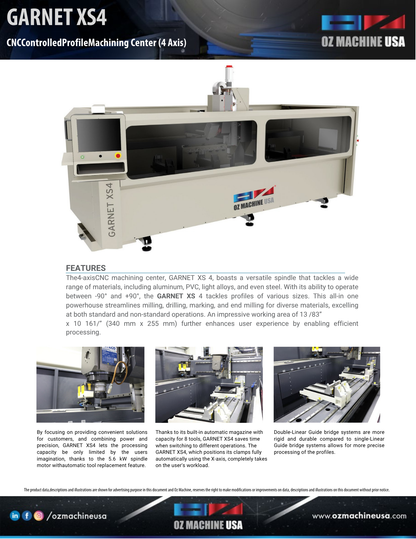

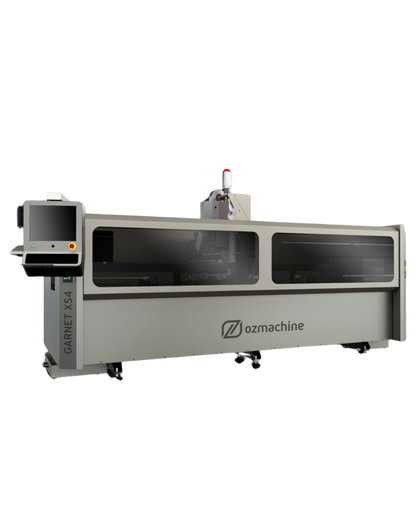

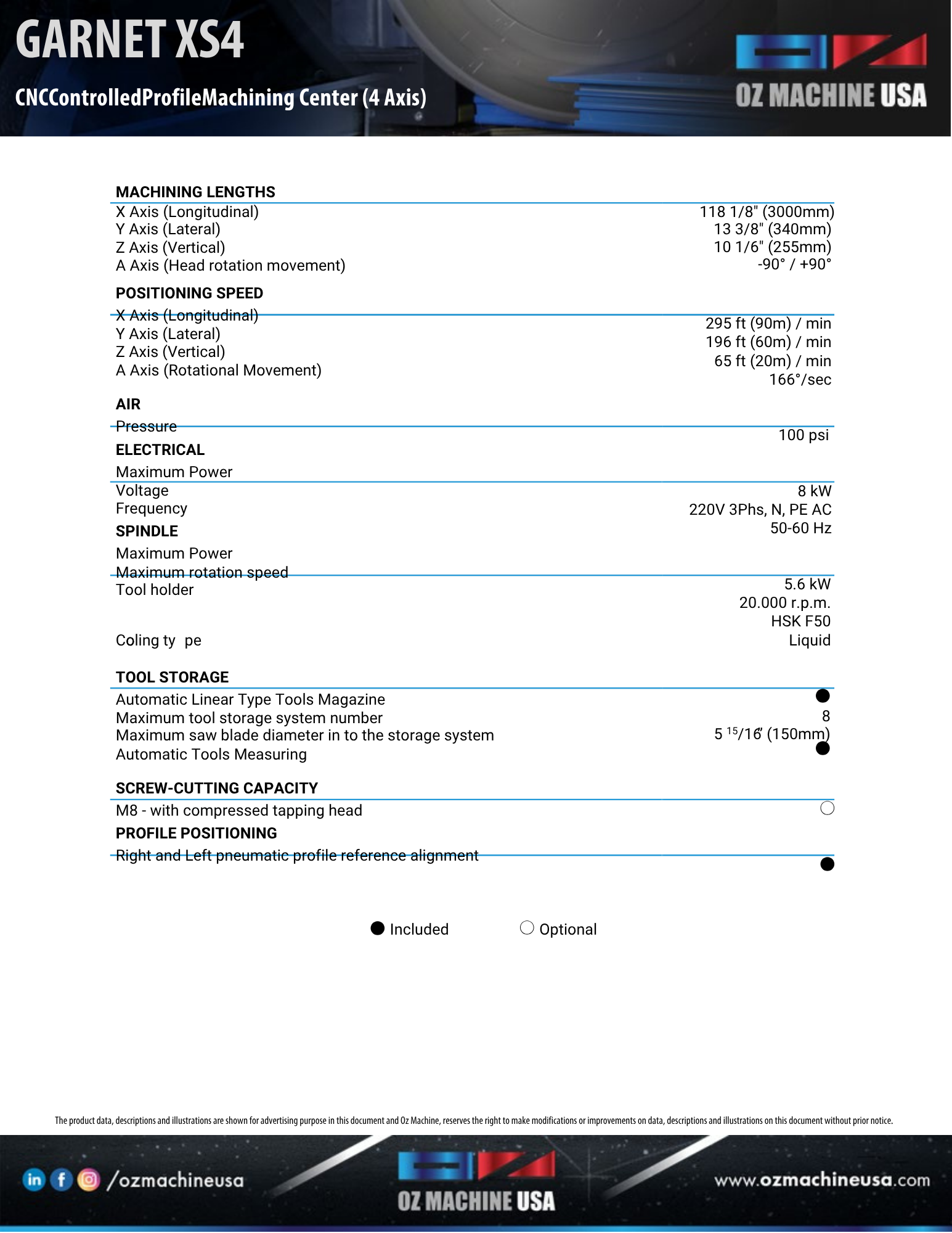

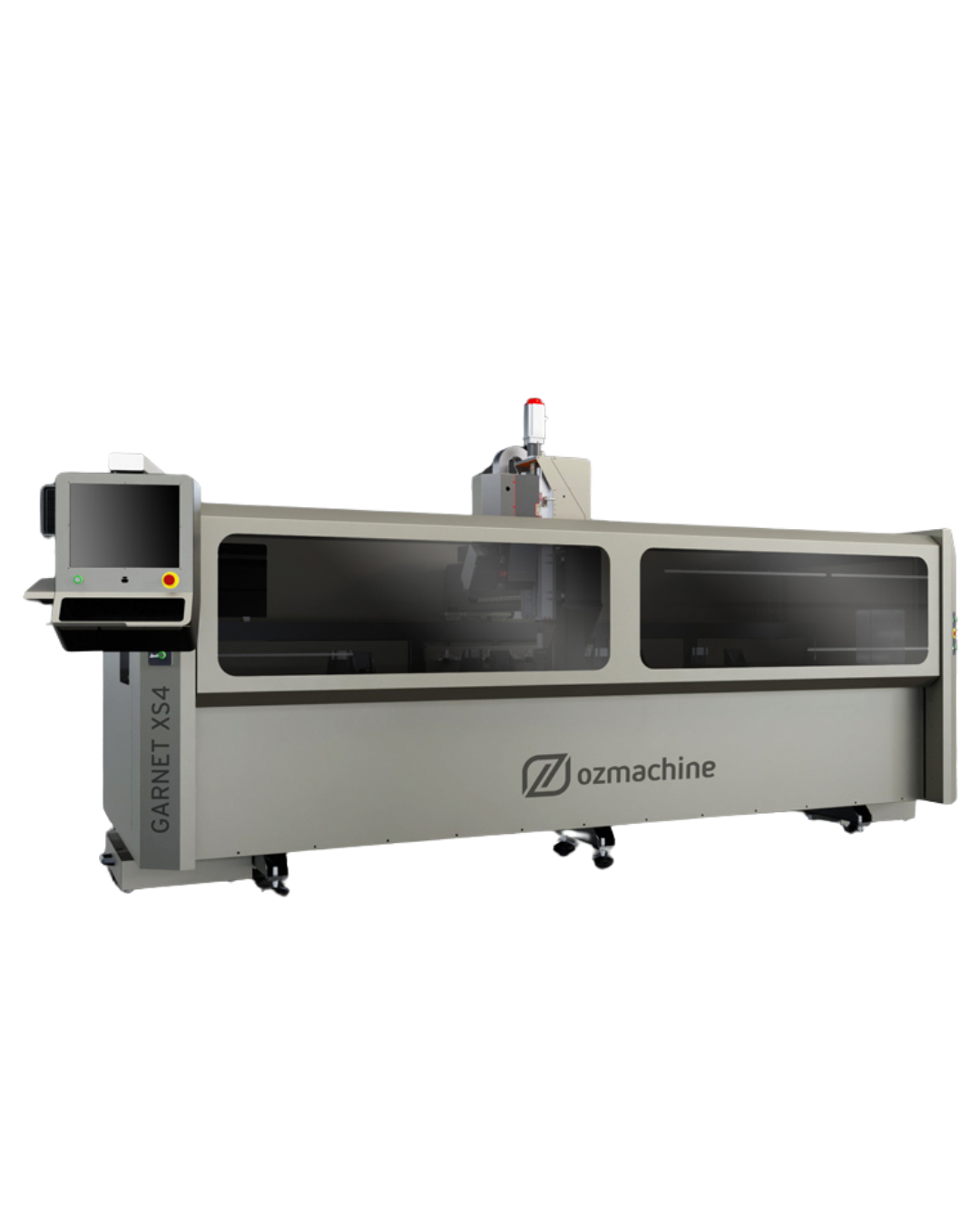

GARNET XS4 CNC Machining Center is a powerful and versatile 4-axis CNC machining center engineered to meet the demands of modern profile processing. Featuring a robust 5.6 kW spindle motor with a working range from –90° to +90°, it delivers outstanding performance across a wide variety of materials, including aluminum, PVC, light alloys, and steel. This wide angular capability allows the machine to adapt effortlessly to profiles of different sizes and geometries.

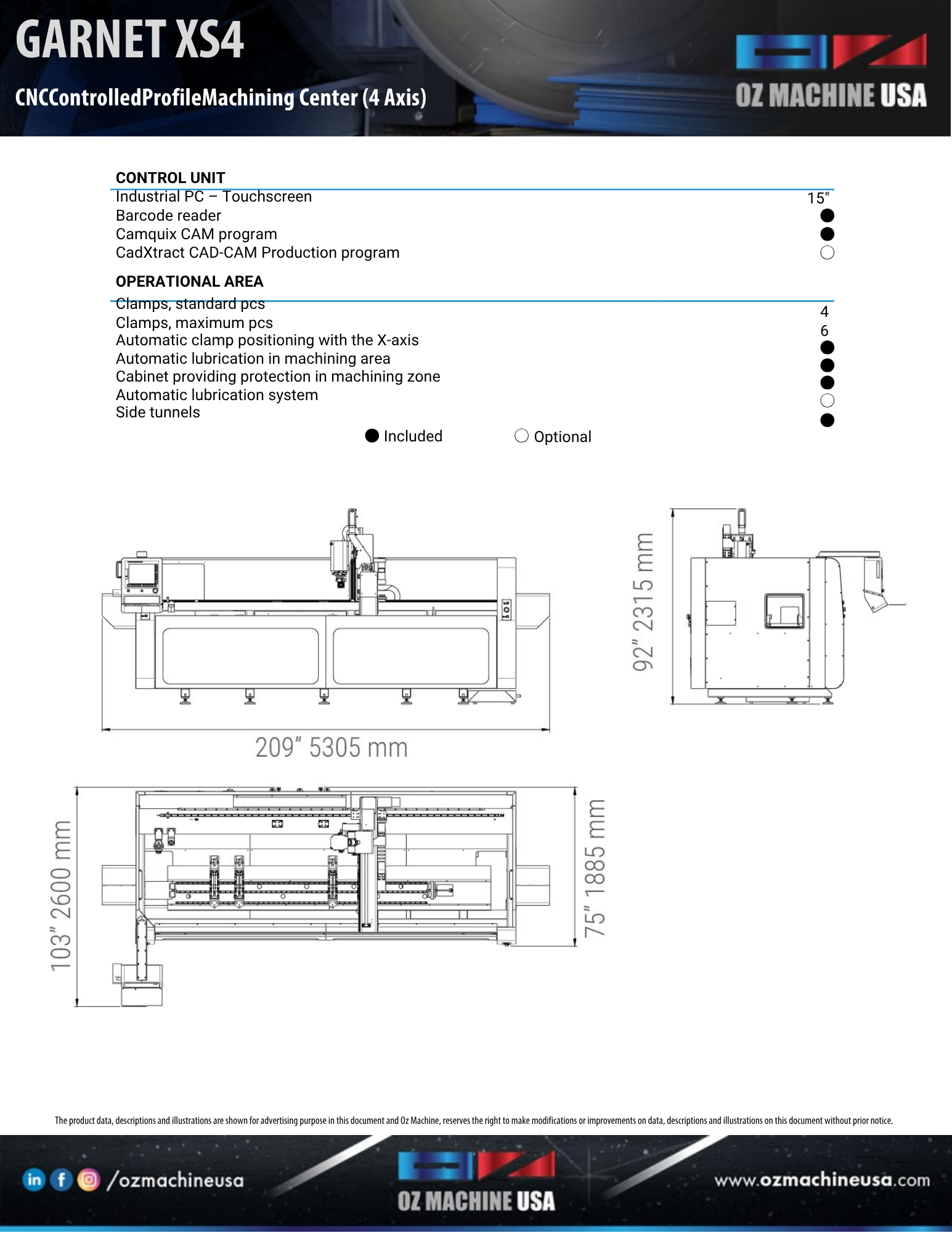

Designed as an efficient all-in-one machining solution, the GARNET XS4 combines milling, water channel opening, punching, marking, and end milling into a single streamlined workflow. It excels in both standard and non-standard applications, offering manufacturers the flexibility needed for custom production requirements. The generous 320 × 255 mm working area enhances productivity by enabling smooth, efficient processing with minimal repositioning.

Productivity is further enhanced by an automatic tool changer supported by a built-in 8-tool magazine, significantly reducing downtime between operations. The machine’s fully automatic clamp positioning along the X-axis removes the need for manual adjustments, taking on the operator’s workload and ensuring consistent, repeatable setups. Clamp capacity can be optimized on demand, allowing easy adaptation to unique profile dimensions and production needs.

Engineered for precision and durability, the double-linear guide bridge system delivers superior rigidity compared to single-guide designs, minimizing vibration and ensuring highly accurate machining results. An optional automatic lubrication system simplifies maintenance of transmission components, extending service life while maintaining long-term process accuracy. With its balance of power, precision, and intelligent automation, the GARNET XS4 empowers users to expand their machining capabilities—where productivity is limited only by imagination.
